Solar Seawater Desalinator Water Purifier Machine Seawater to
Drinking Water Machine
1. Solar off-grid system Introduction:
The solar off-grid system is mainly composed of solar battery
modules, solar charge controllers, batteries and off-grid
inverters.
In the case of sufficient sunlight during the day, the solar panels
installed on the roof or in the open space generate electricity
through the off-grid inverter and convert it into alternating
current to supply power to the load, and the excess energy is
stored in the battery.
In the absence of light at night, the electric energy stored in the
battery is converted into alternating current through the off-grid
inverter to continue to supply power to the load.
The system is advanced in technology, safe and reliable,
energy-saving and environmentally friendly, and has been widely
used in remote mountainous areas, islands, pastoral areas, forest
farms, etc. that are difficult to cover with public power grids,
providing them with household electricity (such as lighting, TV
broadcasting, laundry and cooking, etc.) , the production of office
electricity (such as machinery and equipment, computer printers,
telephone communications, etc.), is the best choice to solve the
electricity problem in areas lacking electricity.
2. Solar seawater Desalinater working process
The solar seawater desalinator can be applied to seawater
desalination and brackish water desalination. It is mainly composed
of solar panels, inverters, water pumps and related water treatment
mchine. Its working principle is to use solar power to drive water
treatment equipment to operate. The system can not only use solar
energy alone, but also can be used in conjunction with city power
and diesel generators, which can maximize the complementarity
between clean energy and traditional energy.
Working principle and function of solar energy + water treatment
● Specialize in seawater and brackish water desalination, providing
one-stop solutions for remote areas.
● Online monitoring of TDS, PH value, water storage capacity, water
quality protection, automatic operation of water level, safe and
efficient.
● Without a large energy storage system, it is easy to obtain
stable water extraction, water purification, water production and
Store water.
● Multiple energy management and control technologies to maximize
the use of solar energy and high conversion efficiency.
● Select the energy storage module according to the needs to
realize the preferential water supply or power supply of one
machine with multiple functions.
● Based on solar energy, optimize water production and purification
processes in stages.
● Adapt to complex weather, stable water supply.
● Mixing module can be selected to realize 24-hour working time.
● Realize multi-machine parallel connection and large-scale
application.

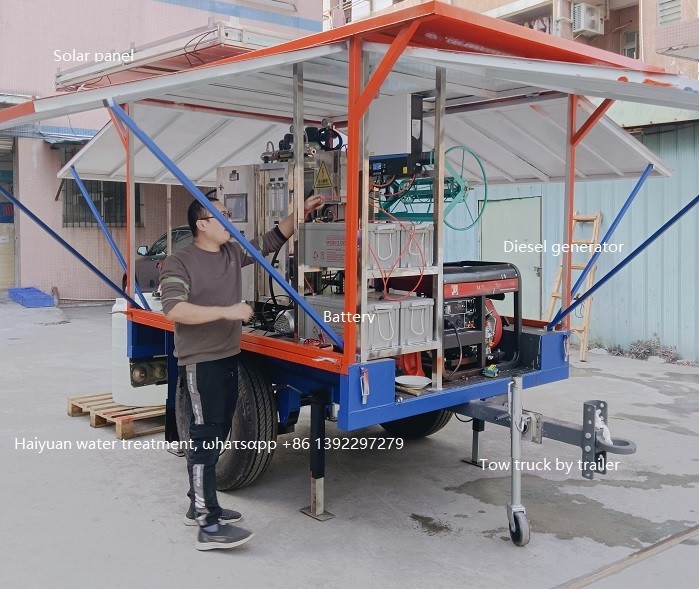

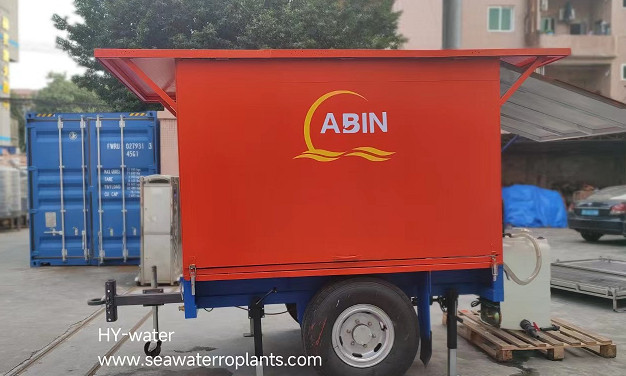

3. Solar Seawater purifier machine image for reference
4.Solar Seawater to drinking water machine parameters
| Model | HY-SWRO1T | HY-SWRO2T | HY-SWRO5T | HY-SWRO10T |
| Daily fresh water production (m3) | 1 | 2.5 | 5 | 10 |
| Recommend PV input (kWp) | 4 | 10 | 16 | 22 |
| Max DC input voltage (Voc) | 880 |
| Mppt string | 1 |
| MPPT voltage (Vmp) | 460-800 |
| Raw water (TDS) | <= 38000 |
| Fresh water (TDS) | <= 300 |
| Operate temp | 5-55℃ |
| Energy storage (Optional) | Lithuim iron battries with 5kWh, 10kWh, achieve water supply for
household 220Vac 50Hz |
| Power supply | Grid, diesel generator (380Vac 50Hz 3ph) |
| Daily fresh water production means per recommend PV array only
according to 5kWh/m2/day solar radiation. If use grid, diesel or
other power supply for 24 hours a day, fresh water production will
be increased to max 5 times. |
More Solar Seawater Desalinator Water Purifier Machine Seawater to
Drinking Water Machine info
Contact us:
Email: sales005@water-sy.com
Website:www.seawaterroplants.com
Mobile/Whatsapp/Wechat:+86 13538523642
Company introduction:
HAIYUAN in the world:
To find the most appropriate proposal for you, please advise
following information.
1, Untreated water quality or water quality? (TDS, Iron or
Manganese).
2, Treated water purpose (for drinking or other purpose)
3, Treated water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
3 . Power (220/380V/415V/460V, 50 or 60 Hz) 3 phase.
4. If source water is tap water no need analysis report(We will
make design as per TDS less than 2000ppm)
6. Any other detail requirement.please tell me as more as you
know.( pump/membrane or other accessories brand)
