Mobile machine solar reverse osmosis seawater
desalination system
1. mobile solar seawater desalination system Introduction:
The system uses solar panels to absorb solar energy and convert it
into electrical energy to provide to the battery. So the battery
can provide electrical energy for the reverse osmosis system to
desalinate seawater into drinking water, and the system can
customize the water production according to customer requirements.
In addition, the desalination sytem is completely mobile, and the
entire solar desalination system can be loaded into a trailer and
then run freely with an SUV driving the trailer. At the same time,
it can also use the existing desalination technology, not only can
be powered by solar energy, but also can use chemical batteries,
diesel generators or any other external power source, so the use
efficiency is extremely high, and it can save costs.

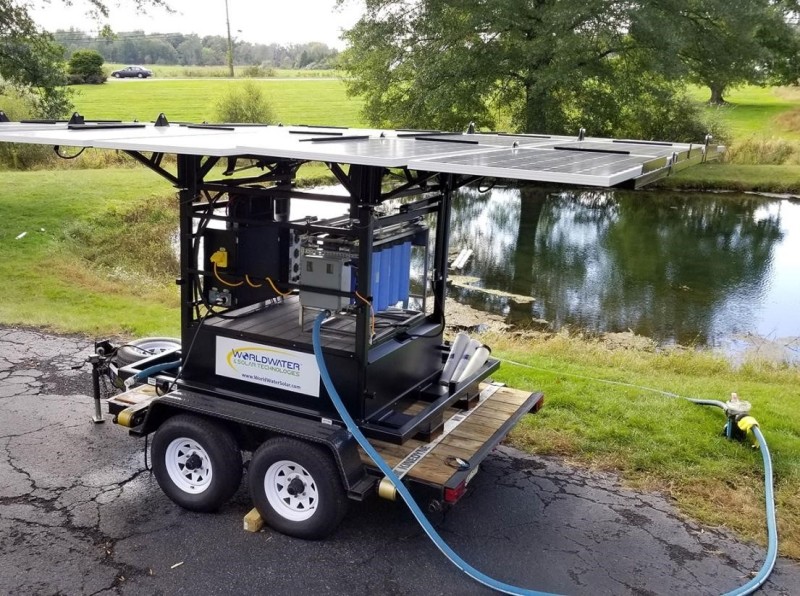

2.Mobile solar seawater desalination system image for reference
Feature:
1. Pure solar zero fuel, from small 2-panel compact units to
24-panel solar trailers with 5kWh-100kWh batteries
2. Compact footprint or mobile trailer with expandable solar panels
3. 650W/455W/380W high-efficiency monocrystalline solar panels
4. Free maintenance of large LiFePO4 lithium battery capacity for
your choice
5. Backup generator type options are diesel, gasoline and propane
generator, power from 3kw to 60kw as your optional
6. High-quality components, perfect system performance, maximum
conversion efficiency of 98% and full-load efficiency of 97%.
7. Real-time positioning and remote control can be set
3.Mobile solar reverse osmosis seawater desalination system Customized Specification
| No. | Name | Specification | Brand | Material | unit |
| 1 | Feed water pump | CHL2-30/0.75 KW, Material: SS316L 3PH 380V/50Hz,
Low flow switch, pressure switch,Solenoid switch
Inlet/outwater pipes&valves | CNP | SS316L | 1 set |
| 2 | Sand filter | FRP Vessel: 844
Quarts sand 40kg
Manual control valve | JSPS | Glass Fiber | 1 set |
| 3 | Antisland dosing deivce | Antiscalan dosing pump: AKL603
Dosing tank: 30L | JSPS | PE | 1 set |
| 4 | SWRO Skid with realated accessories | 20" Jumbo 5um PP filter
20" Jumbo 1um PP filter | JSPS | PE | 2 set |
| High pressure pump PF-20LPM/2.2 KW, | PINFL | SS316L | 1 set |
SWRO membrane 4040-4pieces
RO membrane housing fiber glass 4pieces | Vontron | fragrant polyamide | 1 set |
Online water quality montor 1 set Great
Flow meter 2pcs
High pressure hose 1set
Flushing needle vavle 1 set
UV sterilizer 20W 1 set
Pressure adjust valve 1 set
Full fresh water flow switch 1 set
Pipeling&fitting 1 set (Low pressure gague UPVC, High pressue
pipes is SS316L)
Skid frame SS304 and related accessories
Control panel:Touch screen with PLC control system
Other electrical: Relay, buttons, circuit breaker,wires etc. | JSPS | / | 1 set |
| 5 | Solar panel system | Solar panel :Single power 410W. 12pcs
Single size: 1722×1134×32
Lead acid battery: 12V 250AH 4pcs
Solar controller: 1pcs
Inverter: 10KW 1pcs | JPS | / | 1 set |
| 6 | Diesel generator | 220V/60hz 1phse: 6.5KVA | Jsps | 1 | set |
| 7 | Trailer | HY-ATV/2T plate trailer
Size: L2×W1.8×H2.2m
load-bearing: 2000kg
Tires: 2 pcs
Equipped with shock absorbers, brakes, outriggers | Jsps | 1 | set |
| 8 | 1 year
consumables | PP filter elements (1-2 months need to change) | JSPS | PP | 24 pcs |
| UV lamp 20W ( 9000hour need to change) | CN | / | 1 |
Remarks:
1. Production time:4-5 weeks
2.Terms of payment: TT50% prepaid, balance paid before shipping
3. Plant size bigger trailer size L2×W1.8×H2.2m
4: Packing: Plywood s
5. Warranty: 1 year
6. Voltage: 380V/50hz 3 phase, Power consumaption: 2.95 KW
7. Seawater TDS ≤35000ppm.
Note: TDS variations and temperature changes will cause variation
in the system running |
The mobile solar seawater desalination system can be used in high
salinity areas and coastal areas. Powered by solar energy and
reverse osmosis membrane system, high-pressure pumps with
high-quality, equipped with reasonable pretreatment devices,
effectively remove harmful substances such as inorganic salts,
heavy metal ions, organic matter, bacteria and viruses in water,
and can desalinate seawater to meet WHO standards. Drinking pure
water can solve the drinking water problem in water-scarce areas,
and can also be used for irrigation water, daily life water, etc.
Company introduction:
HAIYUAN in the world:
To find the most appropriate proposal for you, please advise
following information.
1, Untreated water quality or water quality? (TDS, Iron or
Manganese).
2, Treated water purpose (for drinking or other purpose)
3, Treated water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
3 . Power (220/380V/415V/460V, 50 or 60 Hz) 3 phase.
4. If source water is tap water no need analysis report(We will
make design as per TDS less than 2000ppm)
6. Any other detail requirement.please tell me as more as you
know.( pump/membrane or other accessories brand)
