Pharmaceutical ro plant purified water plant in pharmaceutical
industry
I te m
S p ec i f i c a t i on
Q t y
E X W p r i c e (U S D $) De l i v er y
Water Treatment Plant
Model: HY-500LPH
500lph Double RO+EDI system
1 set
***
7CBM
TOC Analyzer
1 set
***
-
Delivery
to client address
1 set
***
-
1. D e s ig n S c o p e Raw water: City tap water
Product water: Pharmaceutical Use, follow by USP standard of
PW(Purified Water)
TOC<500ppb Conductivity<1.3us/cm Aerobic bacteria<100cfu/ml
Water temperature: 2—50℃
Production capacity: 0.5m3/hr
Voltage: 3PH x 415V, 50Hz
Power supply: 4.4KW
Installation size(+/-10cm): L2.5×W1.0×H1.8(m)
2. T r a d e ter m s Payment Term: 40% deposit, 60%T/T paid before delivery
Lead time: 4-6 weeks after receiving T/T payment
Packing: Export Standard packaging
The warranty period: 12 months
Quote date: September 29, 2021
Validity: Within 3 weeks
3.Process flow
Raw water tank→ Feed water pump→ Sand filter→ Activated carbon
filter→ Water softener→ 5µ cartridge filter→ 1st High pressure
pump→ 1st RO system→ pH regulation dosing→ 2nd high pressure pump→
2nd RO system→UV sterilizer→ RO water tank→ EDI booster pump→ EDI
system→ TOC resolver→ 0.1µ Cartridge filte→ Product water tank
4.T e c hn i c a l d et a i l s ( 500lph D ouble R O+E D I sys te m )
N o.
I te m
S p ec i f i c a t ion
U nit
Q t y
1
Raw water tank
Material: PE/SUS/RC Capacity: ≥1.5m3 set
1
Liquid level sensor
Brand: SUS316
set
1
2
Feed water pump
Model: CHL2-40 Q=1.5m3/hr, H=33m Material: SUS316L Power: 0.55KW
Brand: CNP/CN set
1
Accessories
Base,regulating valve, check valve, etc. lot
1
3
Sand filter
Model: Φ325×1350(mm) Material: SUS316
set
1
Filter media
Model: Quartz sands
kg
125
Control valve
Model: AUTO/F71Q1 Brand: RUNXIN/CN
set
1
4
Activated carbon filter
Model: Φ325×1350(mm) Material: SUS316
set
1
Filter media
Model: Activated carbon
kg
50
Control valve
Model: AUTO/F71Q1 Brand: RUNXIN/CN set
1
5
Water softener
Model: Φ325×1350(mm) Material: SUS316
set
1
Filter media
Model: Resin 001×7
liter
75
Control valve
Model: AUTO/F71Q1 Brand: RUNXIN/CN set
1
Brine tank
Model: PE 100L
piece
1
6
pH regulation dosing
Metering pump: KCL-635 Brand: SEKO/ITALY
set
1
Dosing tank
Model: PE 40L
piece
1
pH sensor&meter
Brand: CREATEC/CN
set
1
7
5µ Cartridge filter
Material:SUS316L Size: Φ159×500(mm) set
1
Filter element
Model: PP 20" 5µ
piece
3
8
1st High pressure pump
Model: CDMF1-25 Q=1.5m3/hr, H=125m
Material: SUS316L Power: 1.5KW Brand: CNP/CN
set
1
Accessories
Base,regulating valve, check valve, etc. lot
1
9
2nd high pressure pump
Model: CDMF1-21
Q=1m3/hr, H=98m Material: SUS316L Power: 1.1KW Brand: CNP/CN
set
1
Accessories
Base,regulating valve, check valve, etc. lot
1
RO membrane
Model: LP21-4040
Material: Aromatic poly-amide Desalination rate: 99.5% (single)
Brand: VONTRON/CN
piece
5
Frame
Material: SUS304
set
1
RO membrane vessel
Model: SUS316 Specification: 4040×1 Brand: JISHUI/CN piece
5
Accessories
Flow meter, pressure gauge, etc.
lot
1
10
UV sterilizer
Material: SUS304 Wavelength: 254nm Power: 14W
UV lamp×1 piece
set
1
11
EDI booster pump
Model: CHL2-40 Material: SUS316 Power: 0.55KW Brand: CNP/CN set
1
Accessories
Base,regulating valve, check valve, etc. lot
1
12
EDI system
EDI module×1 Model: PLX-050
Brand: PURETEC/CN
EDI power supply×1 Flow Switch ×1
Flow meter×2 Pressure gauge×2
Brand: PURETEC/CN
set
1
13
TOC resolver
Material: SUS304 Wavelength: 182nm Power: 15W
UV lamp×1 piece
set
1
14
0.1µ Cartridge filter
Material:SUS316L Size: Φ110×600(mm)
set
1
Filter element
Model: PP 20" 0.1µ
piece
1
15
Electrical controller system
Electrical components, circuit breaker, contactor, thermal relay,
etc. set
1
PLC
Brand: Mitsubishi/Japan
set
1
HMI
Brand: Weinview/CN
set
1
16
Pipes
Material: SUS316L
lot
1
17
RO water tank
Material: PE/SUS/RC Capacity: ≥1.0m3
set
1
Liquid level sensor
Brand: SUS316
set
1
18
Product water tank
Material: PE/SUS/RC Capacity: ≥0.5m3 set
1
Liquid level sensor
Brand: SUS316
set
1
5.T e c hn i c a l d et a i l s ( TO C A naly ze r )
N o.
I te m
S p ec i f i c a t ion
U nit
Q t y
1
TOC Analyzer
Model: TA-3.0 Measure Range: 0.001mg/L-1.0mg/L
Accuracy: ±3%
Response Time: 5mins Sample Temperature: 1-95℃
Brand: NEURONBC/CN
set
1

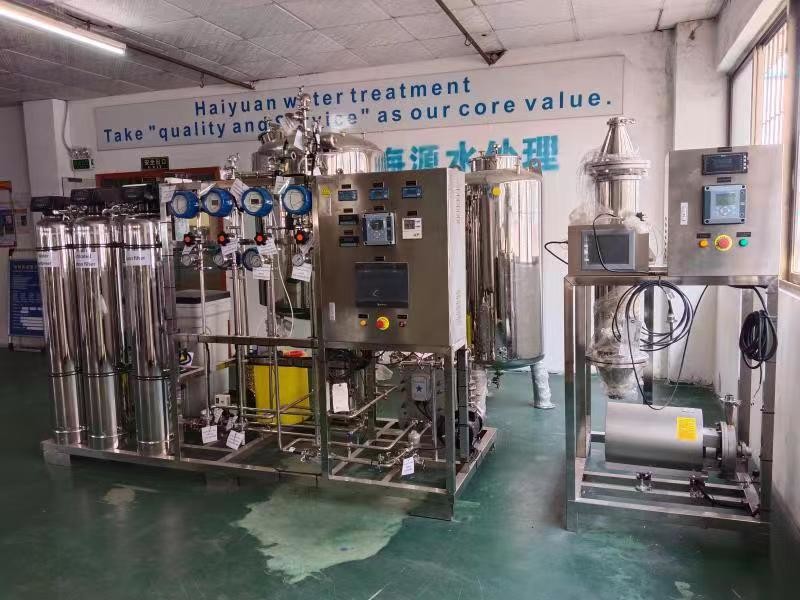

6.T h e p i c t u re s o f s i m ila r s y s t em f o r re fe r e n ce
More Deionized water plant for manufacturing pharmaceutical products
purified water plant in pharmaceutical industry
pharmaceutical ro plant from Haiyuan water
Pls contact us:
Email: sales@seawaterroplants.com
www.seawaterroplants.com
Mobile/Whatsapp/Wechat +86 135 3852 3642
We will offer 3Q(IQ, OQ, PQ) once finished the production, to fill
info in.
The system is designed as whole integrated type, before delivery we
will commission to ensure it can operate properly, and send you
video of that.
