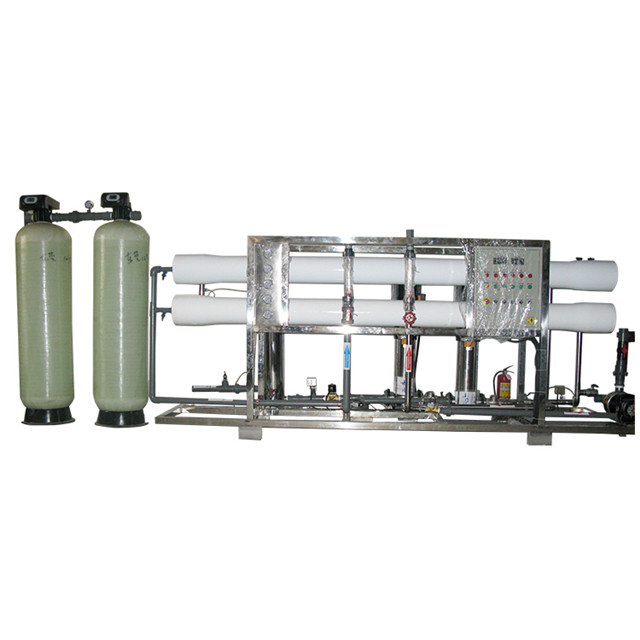

Drinking water sand filter machine prices of water purifying
mineral water filter machine Process function description
1.Prices of water purifying machines use automatic control and
semi-control .Pretreatment parts can adopt fiber glass or stainless
steel material.
2.Drinking water sand filter machine has protected when no power,
poor power, larger electrical current, leakage, short circuit.
3. Prices of water purifying machines is compact, easy
installation.
4.Drinking water sand filter machine equipped with manual and auto
control based on user needed.
5. Prices of water purifying machines produce as per ISO and SGS
standard and main parts accessories have obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any
problem when arrived site.
7.What we provide not only the good products, but also our whole
team, the quality, experience, and service.
Model | HY RO-2000L/Hr |
Process | Pre-treatment+RO |
Power | 3KW |
Power supply | 220V or380V 50Hz~60Hz |
Raw water pump | CHL4-40/0.75KW |
Sand filter, Carbon filter | 460*1625 FRP 2pcs |
Security filter | 20 "× 5μm , 5pcs |
High pressure pump | CDLS2-11/2.2KW |
Reverse osmosis (RO)membrane | 4040 8piece |
Membrane housing | 4080 4pcs SS304 |
Process Description
Process Flow of prices of water purifying machines
Source tank →Feed water pump→ Muti-media filter(sands filter)→
Aactive carbon filter→ Water softener (or inhibitor dosing)→Cartridge/Security/Micro
filter→High-pressure/Centrifugal pump→ Reverse Osmosis system→ RO
purified tank →Ultraviolet sterilizer
Process Introduction of water filter machine
NOS. | Items | Information |
1. water filter machine Pre-treatment part |
1.1 | Sand filter | Remove turbidity, SS matter, organic matter, colloid, etc. |
1.2 | Active carbon filter | Remove color, free chloride, organic matter, harmful matter, etc. |
1.3 | Water softener | Soft water and reduce it's hardness. |
2. water filter machine RO part |
2.1 | High pressure pump | Provide power for RO. |
2.2 | PP filter | Prevent large particles, iron, dust, SS matter, impurity into RO membrane. |
2.3 | RO membrane | Remves: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium. |
3. Electricity control system |
3.1 | PLC+Touch screen control system | Import from Japan and Taiwan. WeiNveiw, Mitsubishi. |
3.2 | Electrivity components | Import from German. Schneider, Omron. |
3.3 | Pipe and fitting | Adopt domestic famous brands. |
Design process test
Why we make you trust our Mineral water filter machine price,prices
of water purifying machines?
Below will show you.↓
