Product Description

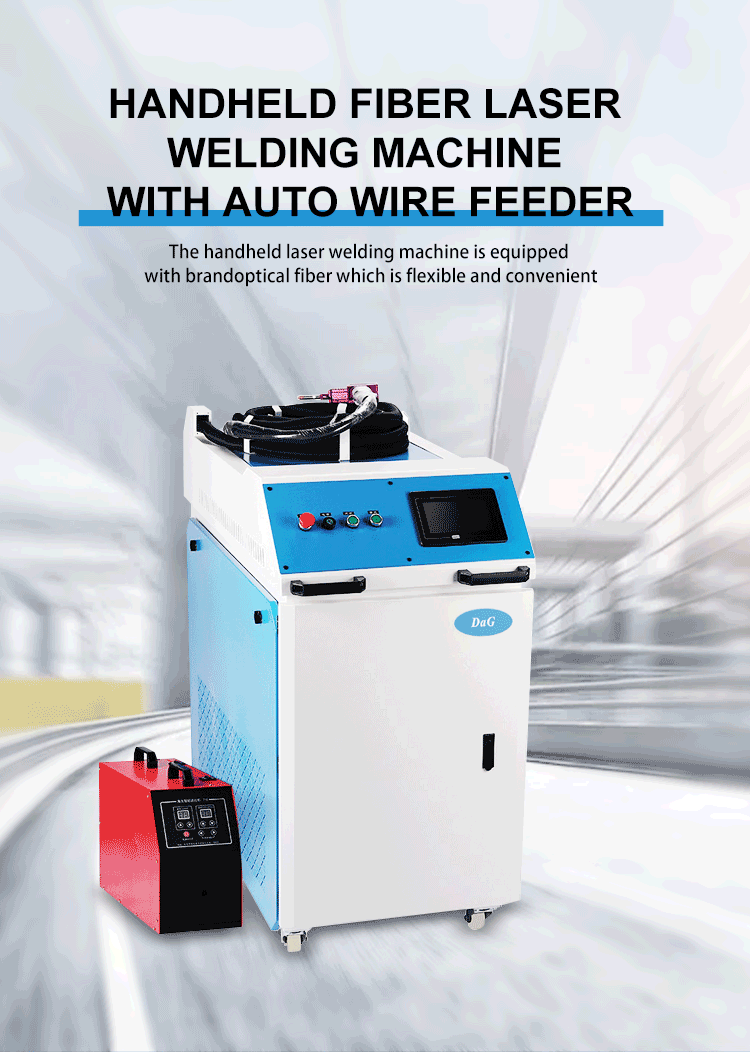

Hand-held Fiber Laser Welding Machine
Advantages:
· Integrated design
· Easy to carry and operate
· High photoelectric conversion rate
· Suitable for all kinds of complex welds
Wleding machine application materials
Laser Welding Machine Introduction
Hand-held Laser Welding Machine adopts continuous fiber laser
source, and is equipped with self-developed hand-held welding head.
In terms of shape, structure and human-machine interface, it is
optimized based on humanization and work effectiveness.
The hand-held welding joint can be customized according to actual
production, which is not often used in non-standard production. It
adopts water-cooled design, long-time welding without burning,
small diameter and hand-held easily. It has the advantages of
simple operation, beautiful welding effect, fast welding speed and
no consumables.
Technical Parameter
Model | MT-WF1000H | MT-WF1500H | MT-WF2000H |
Laser Power | 1000W | 1500W | 2000W |
Laser Type | YAG |
Wavelength | 1070nm |
Voltage | 220V±10% / 50Hz / 30A | 380V±10% / 50Hz / 40A |
Gross Power | <8KW |
Welding Thickness | < 8mm |
Welding Gap Requirements | ≤0.5mm |
Welding Speed | 0~120 mm/s |

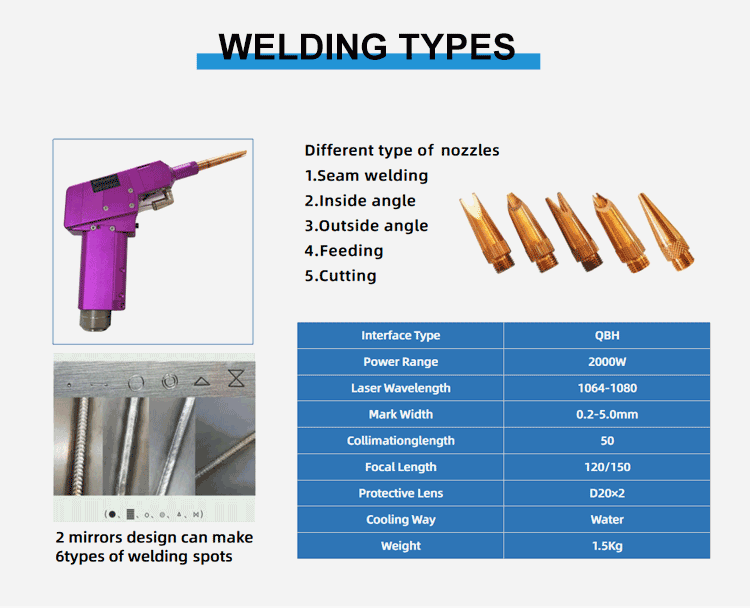

Welding Head Configuration | Swing Welding Head + Water Cooling (optional) |
Laser Operation | Continuous/Modulation |
Beam Divergence Angle | ≤1.2mrad/m |
Welding Joint Interface | QBH |
Fiber Wire Length | 10m |
Spot Dia | 0.2-2mm Adjustable |
Positioning | Red Pointer |
Cooling System | Industrial Chiller |
Operating Temperature | 15~35 ℃ |

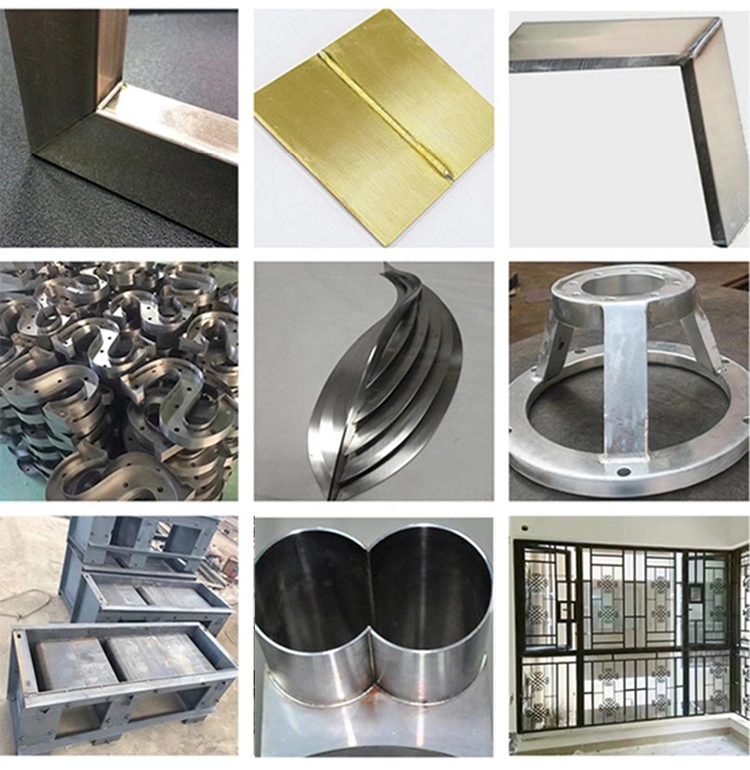

Welding Sample
FAQ
Q1: Do you provide after-sales service?
A1: The machine has a two-year warranty and provides door-to-door
service.
Q2: How long is the delivery time?
A2: Ordinary machines will be delivered in 5-8 days, and customized
machines will take 12-14 days.
Q3: Do you support customization?
A3: Yes, we will make customized service for you according to the
different cutting materials and thickness.
Q4: I don't know how to use it after receiving it, or I have problems
in the process of using it. What should I do?
A4: We have a detailed user manual and video materials, you can learn
from that.
