Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

Ask Lasest Price
Brand Name :	Ronfin
Price :	$1,884.00/Sets 1-4 Sets

Add to Cart

Product Details
Company Profile

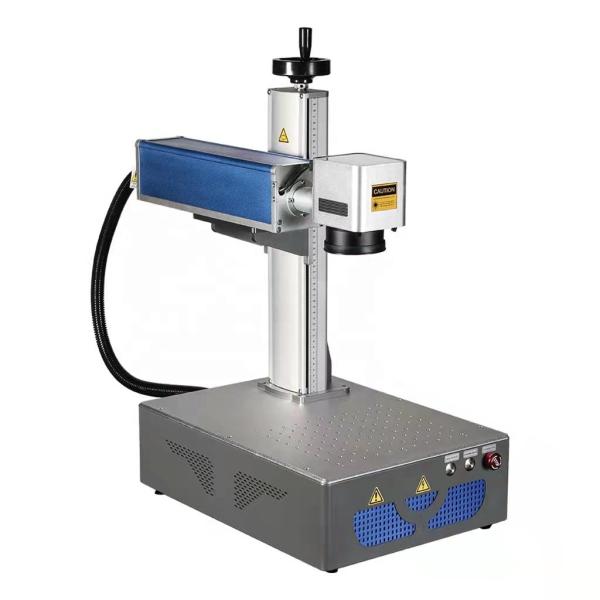

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

Galvo Hand Small Handheld Desktop Portable Mini MAX 20w 30w 50w 100W Fiber CO2 Laser Marking Machine

Product Description

Portable Type Fiber Co2 Laser Marking Machine with JPT/MAX/RAYCUS Source

1. Model: Fiber Laser Marking Machine
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as
PVC,PC, black acrylic.
3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.

Fiber CO2 Laser Marking Machine Model Introduction

Small 20w Fiber Laser Marking Machine for Metal is especially outstanding in the aspect of portability. It is endowed with the features of small volume and easily making on the surface of big volume and heavy objects.

Small 20w Fiber Laser Marking Machine for Metal adopts advanced digital high speed scan galvanometer and module design, that can separate laser generator and lifter.

This kind of machines can satisfy marking applications,Such as food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, mobile telephone shells, kitchen & bathroom hardwares, shells of watches, medical apparatus and instruments, tools’ fittings, electronics and other industries, auto spare parts and other industries.

Small 20w Fiber Laser Marking Machine for Metal has the advantages of low materials consumption, non-toxic, and pollution-free.

Technical Parameter

Model	F10	F20	F30	F50
Laser Power	10W	20W	30W	50W
Laser Type	Fiber Lasers
Wavelength	1064nm
F = Fiber, Customized Specification is Available
Processing Area	7070MM,110110MM,175175MM, 200200MM, 300*300MM (Optional)
Frequency Range	20-200Khz
Beam Quality	<1.6M2
Laser Source Lifetime	≤100000h
Marking Speed	≤8000MM/S
Marking Depth	≤2MM
Repetition Precision	±0.01MM
Min. Line Width	0.03MM
Min. Character	0.2MM
Cooling Mode	Air Cooling
Lifting Height	100~500MM (700MM)
Graphic Formats Supported	PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Power Source	AC 110/220V±10%, 50/60Hz
Gross Power	< 500W
Work Environment	Temp: 10~40 ℃,Humidity : 5 ~85 %, Clean, Less Dust

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

FAQ

Q1: Do you provide after-sales service?

A1: The machine has a two-year warranty and provides door-to-door service.

Q2: How long is the delivery time?

A2: Ordinary machines will be delivered in 5-8 days, and customized machines will take 12-14 days.

Q3: Do you support customization?

A3: Yes, we will make customized service for you according to the different cutting materials and thickness.

Q4: I don't know how to use it after receiving it, or I have problems in the process of using it. What should I do?

A4: We have a detailed user manual and video materials, you can learn from that.
