    30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal

    Ask Lasest Price
    Brand Name : Ronfin, Rofin
    Price : $1,830.00/Sets 1-4 Sets
    • Product Details
    • Company Profile

    30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal

    30w Bird inside ring raycus ipg car plate mopa color laser engraving machine 3d metal fiber laser marking machine for metal

    Product Description

    Mopa Fiber Laser Marking Machine For Color Marking

    Advantages:

    · Color marking on metal

    · Smart design

    · Portable, flexible, multifunctional

    · Unique operating experience

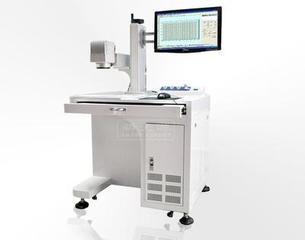

    3D mopa color laser marking machine Introduction


    Mopa fiber laser marking machine can be also called the Color fiber laser marking engraving machine.

    Mopa 30w fiber laser marking machine for color marking is a suitable equipment for high-end electronic products. It is mainly used to mark black or white on anodized aluminum, aluminum alloy, stainless steel and plastic electroplating products without damaging the surface, it also mark colors on stainless steel.

    Based on the needs of domestic and foreign color marking engraving markets, the laser machine is equipped with core optical devices, the most important is the Mopa fiber laser that could adjust the pulse width to mark some special colors on stainless steel and aluminum, not only the gray color or black. Yellow color, Red color, Pink color, Purple color are all available.

    fiber 3d mopa color laser marking machine for jewelry sample


    30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal

    30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal


    Fiber 3d mopa color laser marking machine for jewelry sample

    Laser Machine Technical Parameter

    Laser Power

    20W

    30W

    60W

    80W

    100W

    Laser Type

    Fiber Lasers

    Wavelength

    1064nm

    F = Fiber, Customized Specification is Available

    Processing Area

    70*70MM,110*110MM,175*175MM, 200*200MM, 300*300MM (Optional)

    Frequency Range

    20-200Khz

    Beam Quality

    <1.6M2

    Laser Source Lifetime

    ≤100000h

    Marking Speed

    ≤8000MM/S

    Marking Depth

    ≤2MM

    Repetition Precision

    ±0.01MM

    Min. Line Width

    0.01MM

    Min. Character

    0.2MM

    Cooling Mode

    Air Cooling

    Lifting Height

    100~500MM (700MM)Optional

    Graphic Formats Supported

    PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG

    Power Source

    AC 110/220V±10%, 50/60Hz

    Gross Power

    < 500W

    Work Environment

    Temp: 10~40 ,Humidity : 5 ~85 %, Clean, Less Dust


    30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal

    30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal

    30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal


    30W RAYCUS IPG MOPA Color Laser Engraving Machine For Metal

    FAQ

    Q1: Do you provide after-sales service?

    A1: The machine has a two-year warranty and provides door-to-door service.


    Q2: How long is the delivery time?

    A2: Ordinary machines will be delivered in 5-8 days, and customized machines will take 12-14 days.


    Q3: Do you support customization?

    A3: Yes, we will make customized service for you according to the different cutting materials and thickness.


    Q4: I don't know how to use it after receiving it, or I have problems in the process of using it. What should I do?

    A4: We have a detailed user manual and video materials, you can learn from that.


    More materials and effect question. Please click below send us email or add whastapp +86 13922972795 or+86 13631738120
