Laser Cleaning Machine Advantages:
· Non-contact cleaning
· No damage to the part base
· Simple operation
· Environmentally friendly
Model Introduction
Laser cleaning is a new non-contact surface cleaning technology,
which mainly uses low-power and high energy density pulse laser
beam to act on the surface of the work-piece, so that the surface
stains, oxides or coatings can be evaporated and gasified or
thermally expanded in an instant , so as to achieve the effect of
surface cleaning and purification. Compared with the traditional
way, it has the advantages of environmental protection, no grinding
, no thermal effect etc, and has unique advantages in cleaning
precision work-piece.
Hand held laser cleaning machine Machine Feature
1. Advanced technology, humanized design, small size, easy to
operate;
2. Low energy consumption and environmentally friendly cleaning can
be started without chemical reagents, media, dust and water;
3. The cleaning mode can be preset through the software, and you
can directly switch to the cleaning mode without adjusting
parameters;
4. High cleanliness with auto focus, surface lamination cleaning,
removal of resin, stains, rust, coatings, paints, etc.
Cleaning effect
What materials can be cleaned?
1. Metal surface cleaning,Rust removal
2. Removal paint of metal surface
3. Pretreatment of welding surface cleaning
4. Rubber mold residue cleaning Ship Industry,auto Parts, rubber Mold,
high-end Machine,tire molde and others.
Hand held laser cleaning machine specificion
model | RF-CL50 | RF-CL100 | RF-CL200 | RF- CL500 | RF- CL1000 |
Laser working medium | Pulsed Fiber Laser Generator |
Laser wavelength | 1064nm |
Laser power | 50W | 100W | 200W | 500W | 1000W |
Pulse Energy | 1.0mJ (1.5mJ) | 1.5mJ(2mJ)Customized | 50mJ, 100mJ | 100mJ |
Head Weight | 1.95Kg Isolator | Standard: 1.6Kg Anti-shake head:1.8Kg | Standard: 1.8Kg Anti-shake | 1.95Kg(No include QBH) |
Pulse frequency | 20-100KHz | 20-50KHz |
Peak Power | 13~18KW | 15~20KW | 1MW |
Cooling method | Air cooling | Air cooling | Air cooling | Water cooling |
(20μm)Cleaning Paint / Rust | 2.0m2/h | 4.0m2/h | 8.0m2/h | (100um) Corrosion | (120um) Painting |
(20μm)Cleaning Oil | 2.3m2/h | 4.5m2/h | 9.0m2/h | 2.5m2/h | 3.0m2/h |
Titanium Alloy / Stainless Steel Oxide | 2.0m2/h | 4.0m2/h | 8.0m2/h | (120um) | (100um) |
Cleaning Aluminum Alloy Oxide Film | 1.5m2/h | 3.0m2/h | 6.0m2/h | 1.3m2/h | 6.5m2/h |
Dimension | 760mmX780X790mm | 1100x950x700mm |
Total Weight | 30kg | 60kg | 65kg | 130kg(Including Water tank) | 140kg(Including Water tank) |
Total power | 350W | 600W | 1000W | 1800W | 2000W |
Different configuration and design maybe has little difference |
Scan width | 5-120mm, Hand Continuously Adjustable/automatic, |
Working temperature | 5-40 degree |
For More Details

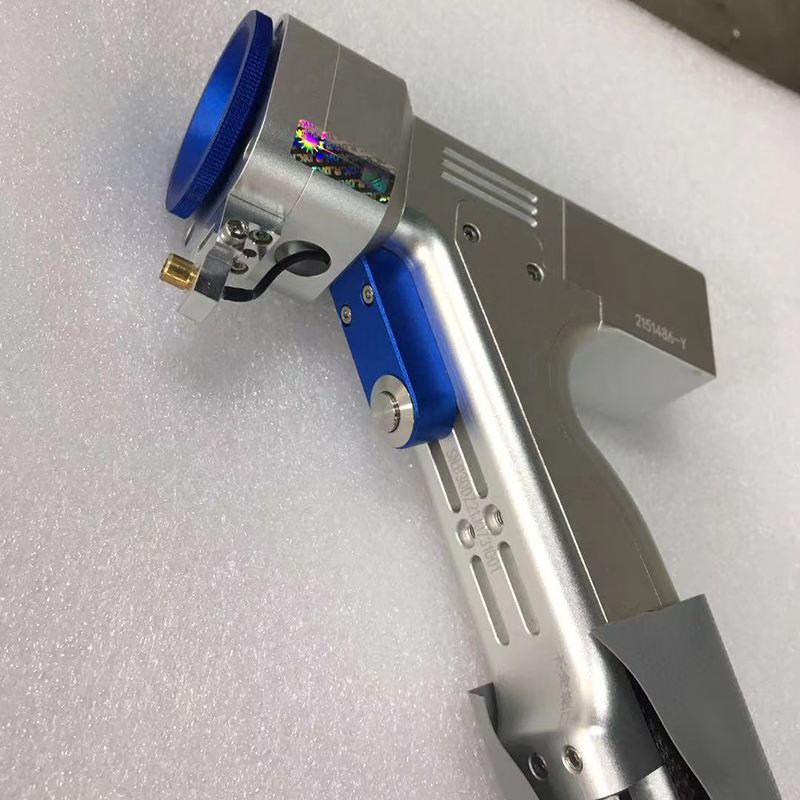

Using LIER cleaning head, the cleaning effect is beautiful The standard configuration is Raycus and MAX laser source, the
quality is stable and reliable
Machine installation and line connection specifications, Mass
production in physical factory, fast delivery
stable and reliable quality
