Salt water softening machine water softener system automatic
electronic resin hard water softener for boiler
Features of water softener
1. Water softener uses automatic control and auto regeneration.
2. water softener system protected when no power, poor power,
larger electrical current, leakage, short circuit.
3. hard water softener is compact, easy installation and easy
mantainess.
4. water softening machine equipped with PLC and touch screen
control and remote login.
5. salt water softening produces as per ISO and SGS standard and
main parts accessories have obtained CE certification.
The automatic water softener is an ion-exchange water softener with
fully automatic control during operation and regeneration. It uses
sodium-type cation exchange resin to remove calcium and magnesium
ions in the water and reduce the hardness of the raw water to
achieve the purpose of softening hard water and avoid carbonate in
the pipeline. , Containers and boilers have fouling. It greatly
saves investment costs while ensuring smooth production.
salt water softening machine water softener system automatic
electronic resin hard water softener series parameter
Flow L/h
Tank model
Tank size (mm)
Resin quantity (L)
Salt box (L)
Control valve
Unit size(m) L×W×H
500L
844
200×1100
25
60/330*700
Runxin/Pentair F65B
0.6*0.4*1.3
1000
1054
250×1350
50
60/330*700
Runxin/Pentair F65B
0.8×0.4×1.5
2000
1252
300×1300
75
100/410*780
Runxin/Pentair F63C
0.9×0.5×1.5
3000
1465
350×1650
100
100/410*780
Runxin/Pentair F63C
0.9×0.5×1.8
4000
1665
400×1650
125
200/520*1010
Runxin/Pentair F63C
1×0.6×1.8
5000
1865
460×1625
125
200/520*1010
Runxin/Pentair F74A
1.1×0.6×2
6-7m3
2162
525×1500
225
500
Runxin/Pentair F74A
1.2×0.7×1.7
8m3
2472
600×1800
300
500
Runxin/Pentair F74A
2×1.2×1.5
10m3
3072
750×1800
450
1000
Runxin/Pentair F74A
2.5×1.5×2.5
Factory price of automatic water softener: Hardness is less than 120 25L resinproducted water 13T Hardness less than 200 25L resin produced water 10~12T Hardness at 400 25L liters of resinproducted water5~6T.
One running one standby salt water softening machine water softener
system automatic electronic resin hard water softener
Has been widely used in below industry. 1. Various steam boilers, hot water boilers, 2. Equipment such as heat exchangers, steam condensers, air
conditioners, direct combustion engines, etc. 3. The system's circulating water supply. 4. Domestic water treatment, food, electroplating, medicine,
chemical industry, printing and dyeing, textile, electronics and
other industrial water treatment and pretreatment as a desalination
system. 5. The hardness of the produced water after being treated by a
single-stage or multi-stage water softener can be greatly reduced.

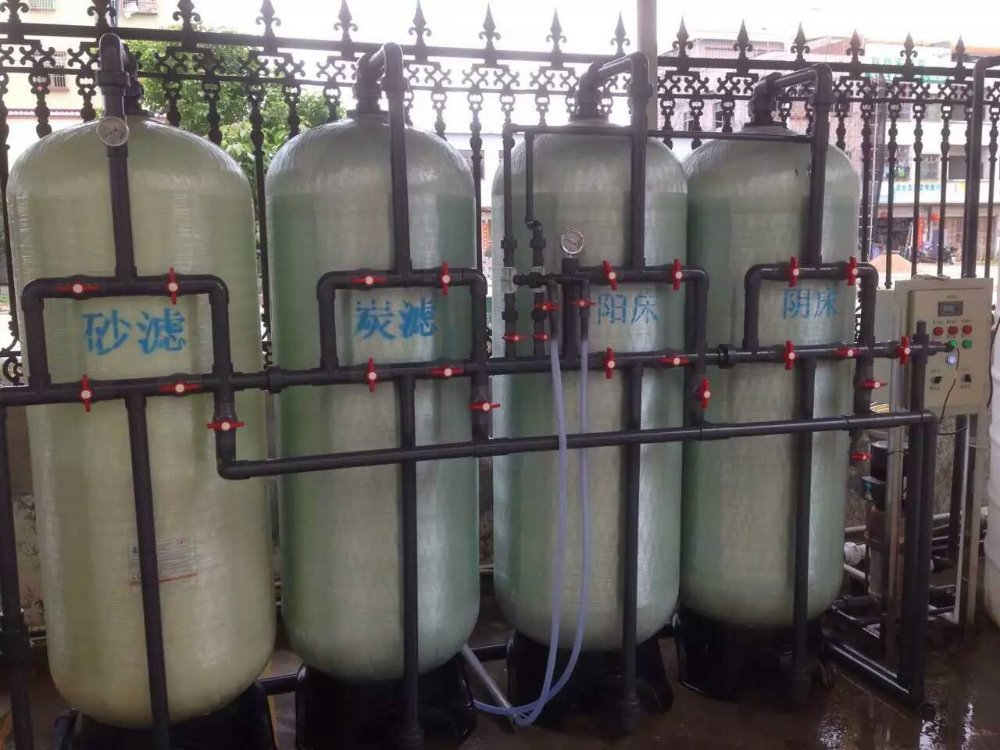

Below is 10m3/hr water softener system
7000Liter/hr filtration with softener.
4000Liter/hr well water filtration and water softener.

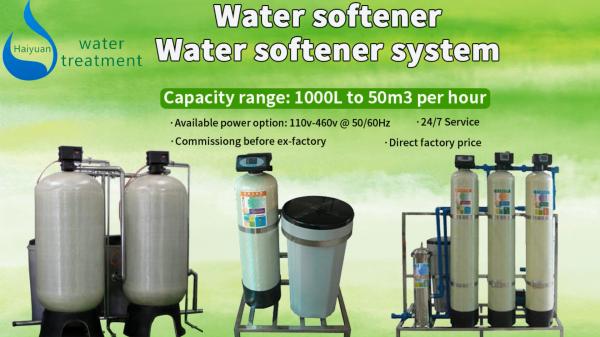

We can custom the capacity water softener system from 1000L/hr
50m3/hr.
Company Information
We have 2 factories +300 workers+ Qualified engineer+ Overseas
service
Our Services
24h after-sales service online
12 months warranty and free maintenace cost
whole life free technical support
Track the order until you get the goods.
We can provide oversea service (Go to on site for installation and commission).
Buying Guides
Water softener buying Guides
To find the most appropriate hard water softenerfor your use, please have the following information ready
1.Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
2·Product water purpose(industry process or others)
3.Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
4.If source water is tap water water analysis report(as per TDS less than1500ppm)
5.Source waterfromborehole/salt/brackish/lake waterIt is necessary to make water analysis report(TDS,Iron,Manganese,TSS,SDI)
6. Any other detail requirement.please tell me as more as you know.
