Containerized RO seawater desalination plant for boat
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY
PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer
Overseas service
Seawater desalination plant Process function description
1. reverse osmosis seawater desalination plant use automatic
control and semi-control .Pretreatment parts can adopt fiber glass
or stainless steel material.
2.RO Seawater desalintion planthas protected when no power, poor power, larger electrical current,
leakage, short circuit.
3. Containerized Seawater desalintion plant is compact, easy installation.
4. seawater desalination ro plant equipped with manual and auto
control based on user needed.
5. desalination plant ro seawater produce as per ISO and SGS
standard and main parts accessories have obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any
problem when arrived site.
7.What we provide not only the good products, but also our whole
team, the quality, experience, and service.
Products features
1.Product water conductivity meter can monitor water quality online
continuously.
2.Low operation cost and long life span
3. There’s RO controller, make whole RO system operating
automatically.
Containerizeddesalinationplants have many advantages over built-in plant room installations:
·Plug and play unit
·Quick installation
·Limited civil work (only container foundation)
·Small foot print
·Easy transportation
·Mobile: useful for construction sites
Turnkey delivery: piping, cables, air conditioning
RO seawater desalination plant feature:

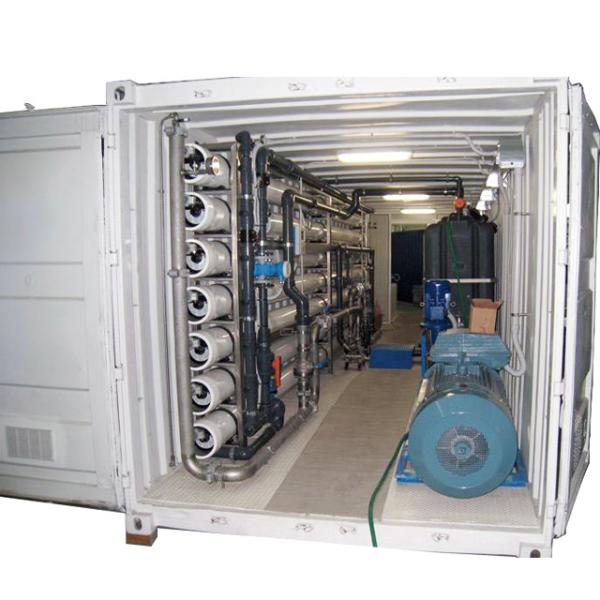

Desalination plantin insulated (20 or 40 ft) containers. Containerization includes
all piping and fittings connected, all cables and wires connected
to instrument and control cabinet. This is a “plug and play”
desalination system supply.
The containerized SWRO plant will be mounted with one side door,
one inlet/outlet (terminal point), one side door and floor
drainage.
The container can be air cooled on request. The Air condition is a
split-unit and the outdoor part will be placed next to the
container.
Haiyuan provides all kinds of pre-treatment required before SWRO,
according to source water analysis and process requirements.
Containerized seawater desalination plant Size / Standard
Depending on the plant size, containerized plant in 20 or 40 ft
container(s) are available.
Containerized RO seawater desalination plant system key
Instrumentation
1.TDSmeter (RO feed,Fresh water)
2.ORP (RO feed)
3.pH (RO feed,Fresh water)
4.Pressure sensor (UF feed,Fresh water)
5.Flow meter (UF feed, RO feed,Fresh water, RO brine)
6.Pressure switch (RO feed,Fresh water)
7.Float switch for feed water and fresh water
Below is 160m3/day seawater desalination plant with energy recovery
device
RO seawater desalination plant:
HY-SWRO-5000LPD
Flow rate
5000L/day
Recovery rate
20%
Applicable power
AC220V,50HZ
Rated power
4.6KW
Feedwater TDS
<45000ppm
freshwater TDS
<600ppm
Working pressure
<6Mpa
operating temperature
5-45℃
Feedwater residual chlorine
<0.1ppm
Feedwater SDI
<5
Feedwater turbidity
<1NTU
Feedwater PH value
3-10
Equipment specification
92X95X145(cm)
Net weight
240Kg
Packing specification(Plywood)
104X100X154(cm)
Gross weight
300Kg

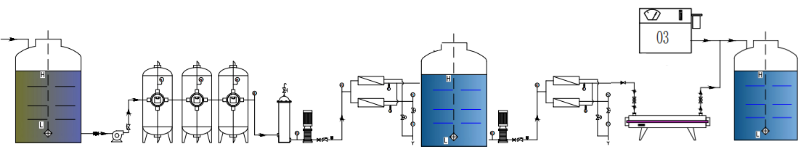

2.Process Flow:
Seawater strorage tank →Feed water pump →sands filter →Security
filter →RO system→ RO Permeat tank→use point
3. Production process flow introduction.
NOS.
Items
Information
1. Pre-treatment part
1.1
Sand filter
Remove turbidity, SS matter, organic matter, colloid, etc.
2. RO part
2.1
High pressure pump
Provide power for RO.
2.2
PP filter
Prevent large particles, iron, dust, SS matter,
impurity into RO membrane.
2.3
RO membrane
Removes: lead, cooper, barium, chromium, mercury,
sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
3. Electricity control system
3.1
PLC +Touch screen control system
Import from Japan and Taiwan. WeiNveiw, Mitsubishi.
3.2
Electricity components
Import from German. Schneider, Omron.
3.3
Pipe and fitting
Adopt domestic famous brands.
Haiyuan workshop
Design process test
Why we make you trust our RO seawater desalination plant?
