Small DI water machine / DI water unit / DI water system
Features
DI water unit usesautomatic controland semi-control, pretreatment parts can adopt fiber glass or
stainless steel material.
Protected when no power, poor power, larger electrical current,
leakage, short circuit.
Compact, easy installation.
DI water unitequipped with PLC and touch screen control and remote login
.(Siemens PLC and Touch screen or Mitsubish PLC and tourch) This
parts is optional.
DI water unit produces as per ISO and SGS standard and main parts
accessories have obtained CE certification.

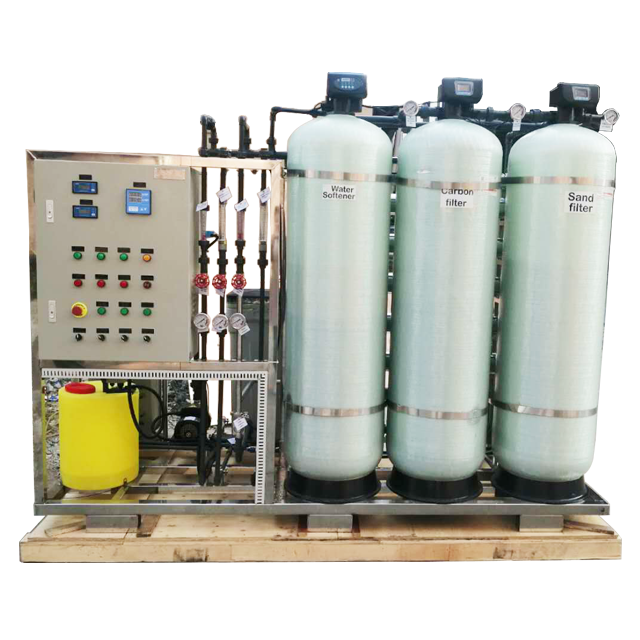

Photo of DI water machine / DI water unit / DI water system
Model
HY-1000LPH
Remark
Product Capacity
1m3/hr
Power supply
3PH x 380V, 60Hz
Feed water pump
Q=2.5m3/h
CNP/CHINA
Sand filter
Φ460×1670(mm)
FRP
Activated carbon filter
Φ460×1670(mm)
FRP
Water softener
Φ460×1670(mm)
FRP
Micron cartridge filter
Φ159×500(mm)
SUS304
High pressure pump
Q=2.5m3/h
GRUNDFOS/DENMARK
RO membrane
4040×5pc
VONTRON/CHINA
RO membrane vessel
4040×5pc
SUS304
EDI booster pump
Q=1m3/h
CNP/CHINA
EDI module
Power=500W
PND/CHINA
Process Description
Process Flow of DI water machine / DI water unit / DI water system
Source tank →Feed water pump→ Muti-media filter(sands filter)→
Aactive carbon filter→ Water softener(or inhibitor dosing)→Cartridge/Security/Micro
filter→High-pressure/Centrifugal pump→ Reverse Osmosis system→ RO
purified tank →Ultraviolet sterilizer
Process Introduction of DI water machine / DI water unit / DI water
system
NOS.
Items
Information
1. Pre-treatment part
1.1
Sand filter
Remove turbidity, SS matter, organic matter, colloid, etc.
1.2
Active carbon filter
Remove color, free chloride, organic matter,
harmful matter, etc.
1.3
Water softener
Soft water and reduce it's hardness.
2. RO part
2.1
High pressure pump
Provide power for RO.
2.2
PP filter
Prevent large particles, iron, dust, SS matter,
impurity into RO membrane.
2.3
RO membrane
Remves: lead, cooper, barium, chromium, mercury,
sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
3. Electricity control system
3.1
PLC+Touch screen control system
Import from Japan and Taiwan. WeiNveiw, Mitsubishi.
3.2
Electrivity components
Import from German. Schneider, Omron.
3.3
Pipe and fitting
Adopt domestic famous brands.
