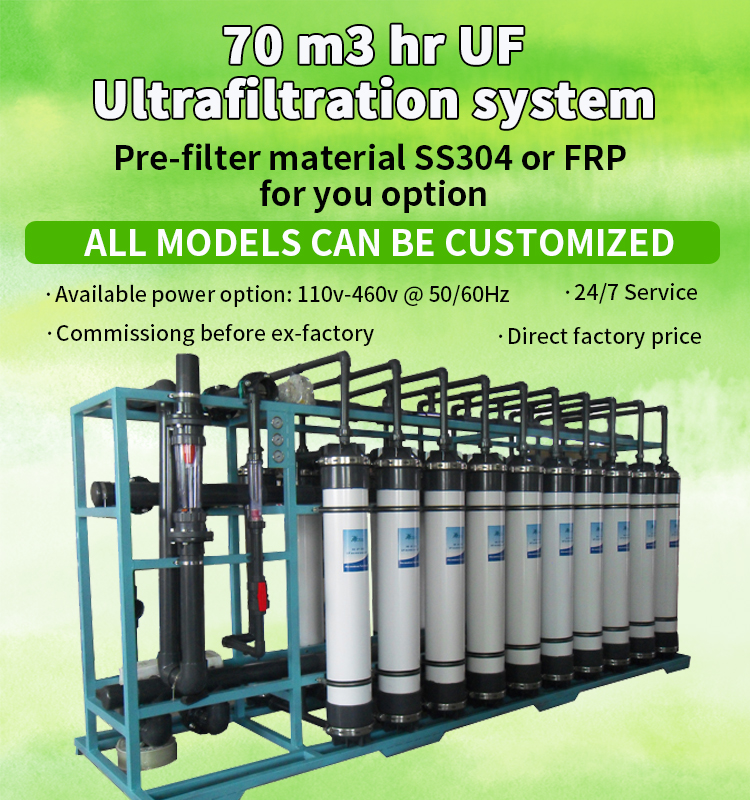

Ultrafiltration water machine Ultrafiltration machine Ultrafiltration unit

process flow introduction

• Source tank →Feed water pump → multi- media filter(sands filter) → active carbon filter → water softener(or inhibitor dosing)→PP filter →Ultrafiltration system →UF tank→ UV sterilization

How Ultrafiltration (UF) machine Work?

Ultrafiltration (UF) machine have diverse membrane filtrations where hydrostatic pressure pushes solvents against a very fine membrane. They block suspended particulates and solids that are large while water and solutes with a lower molecular weight are allowed to flow through the membrane.

Industry and research employ this separation process for purifying and concentrating macromolecular (103 - 106 Da) solutions, which are usually protein solutions. Ultrafiltration is similar to microfiltration, nanofiltration or gas separation, except it differs in the molecule sizes it blocks.

To meet critical discharge criteria, ultrafiltration systems remove the need for clarifiers and multimedia water filtration. Effective ultrafiltration systems use membranes that can be immersed, back-flushable, and air scoured. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.

Ultrafiltration (UF) machine Advantages

Ultrafiltration (UF) water machines are more reliable than a conventional multi-media filter, which removed approximately 10 micron or larger of matter, where an ultrafiltration membrane pore size ranges from 0.01 to 0.10 micron. In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.

· Superior filtration performance with high flux

· Very small nominal pore diameter (0.03 µm)

· Efficiently removes bacteria and viruses

· Occasionally back washed and air scoured to boost performance and removing the fouling layer to extend operating life

· Low fouling membrane modules

· UF Outside-In or Inside-Out Configuration permits reduced plugging and higher solids loading

· Basic, vertical, modular design permits low cost, compact systems

· Effective membrane cleaning has a high chemical resistance and temperature tolerance

Specification

What is Ultrafiltration (UF) water machine and its importance?

Most regions around the world utilize ultrafiltration plants to maintain sufficient preservation of clean water for public consumption. The water filtration efficiency achieved by UF systems are around 250 times greater than conventional media filtration systems. These plants are also very suitable to many industries that require ultra pure water pushed out from these factories. The ultrafiltration membranes used in these plants are enforced to lower turbidity, or utilize as pretreatment to maintain the effectiveness of your reverse osmosis membrane. These plants are generally considered to be of low cost, easy to operate, carry no contaminate residue, and have considerably high recovery ratio.

Advanced Ultrafiltration (UF) system machine

Haiyuan manufactures the most advanced Ultrafiltration (UF) systems for water treatment purposes that fit the needs of different industries and application such as chemical and pharmaceutical manufacturing, food and beverage processing, and wastewater treatment…etc.

Other important applications within the water treatment industry that require the ultrafiltration systems for the improvement of their own processes can be seen in the following:

Haiyuan has over 20 years of experience as a global supplier of ultrafiltration systems that are designed to reliably remove suspended solids, turbidity, bacteria, pathogens and viruses from water. These systems are made to be economical, compact, and capable of allowing decreased plugging, and greater solids loading. The UF membranes ensure maximum filtration performance with high flux, including the system's resistance to chemicals and high tolerance to changing temperatures.
