Mobile containerized reverse osmosis sea water desalination for home machine

Process function description

1.Containerized reverse osmosis desalination machine use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.

2.Mobile containerized reverse osmosis sea water desalination machine has protected when no power, poor power, larger electrical current, leakage, short circuit.

3.Containerized reverse osmosis desalination machine is compact, easy installation.

4.Mobile containerized sea water desalination machine equipped with manual and auto control based on user needed.

5.Mobile containerized reverse osmosis sea water desalination machine produce as per ISO and SGS standard and main parts accessories have obtained CE certification.

6. All the plants will be commissioning well. Make sure don't have any problem when arrived site.

7.What we provide not only the good products, but also our whole team, the quality, experience, and service.

Our Services

1. We can provide oversea service to site help client installnation.

2. OEM&ODM available.

3. The punctual delivery of goods, quality and quantity guaranteed.

4.We have a professional team to provide customers with pre-sales, in-sales and after-sales services.

5.We can provide technical support via phone/email/instant communication tools, or remote video.

6.We have equipment installation/debugging/maintenance, and provide detailed video tutorials (including paper and electronic documents).

7.Portable seawater desalination RO machine packing: Plywood case packing for exporting.

8.We have shipping forwarder to deliver all over the world, customers also can use your own shipping agents.

Why choose containerized seawater desalination plant system?

Containerized desalination plants have many advantages over built-in plant room installations:

· Plug and play unit

· Quick installation

· Limited civil work (only container foundation)

· Small foot print

· Easy transportation

· Mobile: useful for construction sites

· Turnkey delivery: piping, cables, air conditioning

Mobile containerized sea water desalination machine feature:

Desalination plant in insulated (20 or 40 ft) containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” desalination system supply.

The containerized SWRO plant will be mounted with one side door, one inlet/outlet (terminal point), one side door and floor drainage.

The container can be air cooled on request. The Air condition is a split-unit and the outdoor part will be placed next to the container.

Haiyuan provides all kinds of pre-treatment required before SWRO, according to source water analysis and process requirements.

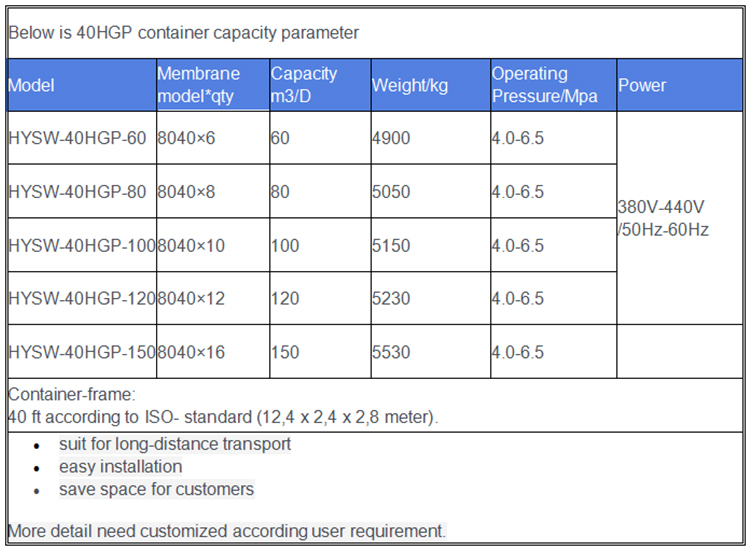

Mobile containerized sea water desalination machine Size / Standard

Depending on the plant size, containerized plant in 20 or 40 ft container(s) are available.

Containerized reverse osmosis desalination machine key Instrumentation

1. TDS meter (RO feed, Fresh water)

2. ORP (RO feed)

3. pH (RO feed, Fresh water)

4. Pressure sensor (UF feed, Fresh water)

5. Flow meter (UF feed, RO feed, Fresh water, RO brine)

6. Pressure switch (RO feed, Fresh water)

7. Float switch for feed water and fresh water

Mobile containerized sea water desalination machine Feature:

1. Pipe line: Low pressure use UPVC pipe, High pressure use SS316L Corrosion resistance,Try to use less bend pipe, reducing pipe and valve.

2. To use hose which could reduce vibration and lower noise.

3. Control part: PLC and HMI Auto control. Press button start. Auto flushing when start and off. Like this way can prolong RO membrane lifetime.

4.Alarm reminder when there is any problem.

5. Containerized RO seawater desalination plant can by remote control. (Option, add more cost)

Note: TDS variations and temperature changes will cause variation in the system running.

HY seawater desalination plant are high specification, It can connection the solar power and diesel generator to reduce cost, self-contained systems suitable for a variety of applications including potable or industrial water supply, temporary or emergency water supply, construction site water supply, the golf, resort or hotel complexes.
