Mixed bed water treament demineralizer mixed bed ion exchanger
mixed bed
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY
PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer
Overseas service
Mixed bed water treament demineralizer mixed bed ion exchanger
mixed bed
Process function description
1. Mixed bed use automatic control and semi-control .Pretreatment
parts can adopt fiber glass or stainless steel material.
2.Mixed bed ion exchange has protected when no power, poor power,
larger electrical current, leakage, short circuit.
3.Ion exchange is compact, easy installation.
4.Mix bed water treatment equipped with manual and auto control
based on user needed.
5. Haiyuan demineralizer produce as per ISO and SGS standard and
main parts accessories have obtained CE certification.
6. All the ion exchange mixed bed will be commissioning well. Make
sure don't have any problem when arrived site.
7.What we provide not only the good products, but also our whole
team, the quality, experience, and service.
FEED WATER QUALITY AND TREATMENT TECHNOLOGY OF MIXED BED
MIXED BED ION EXCHANGE
Mixed bed ion exchange is an ion exchange process for polishing of
demineralised water, meaning for removal of trace dissolved solids
from water.
A mixed bed ion exchanger (also: mixed bed polisher, mixed bed
filter) is a vessel filled with a mixture of cation exchange resin
and anion exchange resin. During service, water flows through this
resin mixture. Cations dissolved in the water are then exchanged
for hydrogen ions (H+), while anions dissolved in the water are
exchanged for hydroxide ions (OH-). Hydrogen ions and hydroxide
ions react to water.
With increasing service life, the ion exchange resins deplete.
Depleted mixed bed resins are regenerated, usually with both
hydrochloric acid (HCl) and sodium hydroxide (NaOH). With each
regeneration, potentially acidic or alkaline waste water is
produced, which may need to be neutralised. In case of smaller
mixed bed exchangers, the ion exchange resin is sometimes also
discarded and exchanged once depleted, rather than regenerated.
Usually, a mixed bed ion exchanger is used either as a last
polishing step downstream of another demineralisation process, or
as a working mixed bed for demineralisation of already partly
demineralised or low-TDS water (e.g. condensate).
Process Introduction
Process introduction of mixed bed demineralizer
Process flow of mix bed water treatment
NOS.
Items
Information
1. mixed bed demineralizer Pre-treatment part
1.1
Sand filter
Remove turbidity, SS matter, organic matter, colloid, etc.
1.2
Active carbon filter
Remove color, free chloride, organic matter,
harmful matter, etc.
1.3
Water softener
Soft water and reduce it's hardness.
2. ion exchange water treatment Deionized water RO part
2.1
High pressure pump
Provide power for RO.
2.2
PP filter
Prevent large particles, iron, dust, SS matter,
impurity into RO membrane.
2.3
RO membrane
Remves: lead, cooper, barium, chromium, mercury,
sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
3. industrial water treatment Deionized Water System system part
3.1
Ion exchange feed water pump
Provide power for ion exchange system.
3.2
Anion and cation exchange filter
Further removes ions in water.
3.3
Security fitler
Prevent the resin leakage
4. mixed bed demineralizer Electricity control system
4.1
PLC+Touch screen control system
Japan Mitsubishi.siemens
4.2
Electrivity components
Import from German. Schneider, Omron.
4.3
Pipe and fitting
Adopt domestic famous brands.
Certifications
Haiyuan workshop

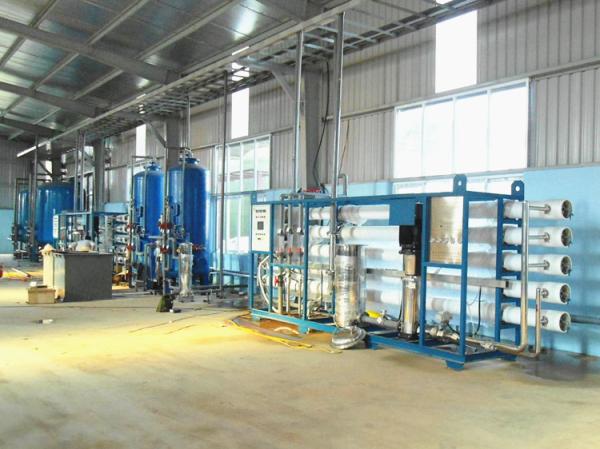

Customers photos
Buying Guides
Mixed bed water treament demineralizer mixed bed ion exchanger
mixed bed Buying Guides
To find the most appropriate mixed bedfor your use, please have the following information ready
·Product water flow rate (m3/hr,m3/day,Liter/hr,GPM,GPDetc.)
··Product water purpose(drinking, irrigation, industry process or
others)
·Feed Water TDS(Total dissolved solids).Is it fromBorehole/salt/brackish/lake water
·Iron
·Manganese
·TSS(Total Suspended Solid)
·SDI(Silting Density Index)<3
·Water must be free from oils and grease
·Chlorine must be removed
·Power(110/220/380V/415V/460V,50 or60 Hz)3 phase.
· It is necessary to make water analysis reprot for borehole
water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water
analysis report.
