RO system water desalination equipment/ desalination machine
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY
PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer
Overseas service
Water desalination equipement Process function description
1. Water desalination machine uses automatic control and
semi-control .
Pretreatment parts can adopt fiber glass or stainless steel
material.
2. RO system water desalination machine protected when no power,
poor power, larger electrical current, leakage, short circuit.
3. Desalination equipment is compact, easy installation.
4. Desalination machine equipped with PLC and touch screen control
and remote login.
5. Desalination system produces as per ISO and SGS standard and
main parts accessories have obtained CE certification.

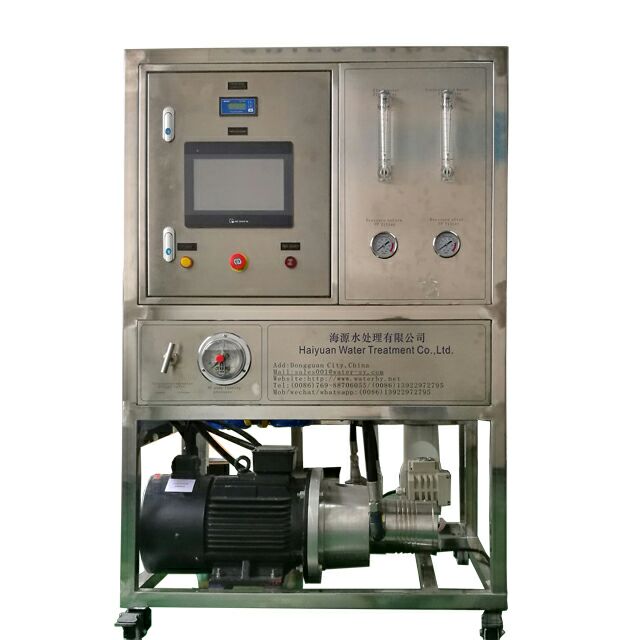

Compact sea water desalination device:
HY-SWRO-5000LPD
Flow rate
5000L/day
Recovery rate
20%
Applicable power
380V/50HZ 3 phase
Rated power
4.6KW
Feedwater TDS
<45000ppm
freshwater TDS
<600ppm
Working pressure
<6Mpa
operating temperature
5-45℃
Feedwater residual chlorine
<0.1ppm
Feedwater SDI
<5
Feedwater turbidity
<1NTU
Feedwater PH value
3-10
Equipment specification
1.2X1.2X1.65(m)
Net weight
240Kg
Packing specification(Plywood)
1.3X1.3X1.75(cm)
Gross weight
300Kg
Process Description
Process Flow of ro system water desalination machine
Sea water tank →Feed water pump→Dosing system→ Muti-media filter→
active carbon filter→Antiscalant/inhibitor
dosing→Cartridge/Security/Micro filter→ Plug pump→ Reverse Osmosis
system→ RO purified tank →Use point
Process Introduction of RO system water desalination equipment
NOS.
Items
Information
1. Pre-treatment
Sea water tank
Store sea water, let it have a sedimentation before entering the
plant.
Feed water pump
Provide power for pretreatment part.
Dosing system
And add the flocculant.
Quartz sand
quartz sand, used to remove iron,colloid,silt etc, to make effluent water cleaning.
Active carbon filter
Remove color, free chloride, organic matter, harmful matter, etc.
Dosing system
Detail dosing system will be decided by: source quality & treated
water quality requirements.
Normal including: inhibitor dosing, PH dosing, reducing dosing,
germicide dosing.
2. RO plug system
Security filter
Prevent large particles, iron, dust, SS matter, impurity into the
RO membrane.
Plung pump
Provide power for RO.
RO membrane
Removes: lead, cooper, barium, chromium, mercury,
sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
3. Control system
Control panel
Assembled by factory. Auto type.
PLC mode
Adopt Mitsubishi from Japan, good quality.
Touch screen
Make use of WeiNview from Taiwang. Convenience for user to operate.
Electricity components
Schneider/Omron from German.
Plant skid
Anti corrosion paited.
