Ultra filtrationfilm is a film filtering between micro-filtering and
nanometer-filter,which is applied to separation,concentration and
purification of substance.Its token is that withhold amount of
molecule while it is used.It is mainly used to separate
macromolecule,colloid and micro molecule substance such as mote
solvent in liquor,which make macromolecule, colloid and mote etc
withhold on the film surface /then substance cycle to flow to form
concentration liquid and reach the aim of separation, concentration
and purification of substance.The field applied of ultrafiltration
film is food,drink,biology and medicine,industry of fine chemicals
and treatment and reclaim to use of waste water.
Product parameters
Model
HYuf-1-100T/H
Raw water source
Tap water
Water production
1-100 ton / hour
Operating temperature
5-45℃
Work pressure
30-45 psi
control method
Automatic, PLC+HMI (optional)
Voltage frequency
220V/380V/415V/440V 50-60HZ
Use environment
Room temperature, level ground, drain
package
wooden box
weight
200kg
size
800*600*1600MM
transport
sea transportation
Hollow fiber membrane component main technical indicators
Product water turbidity:<0.1NTU
Bacterium elimination rate:>5log
Membrane material quality: PAN/PS/PES/PVDF
Inter cedtjon molecular weight: Internal pressure6000,10000,67000
,100000
High hydraulic pressure :0.3Mpa
Enters the water turbidity:<50NTU
Highest operating temperature:45℃
Design Temperature: 25℃
Endures the PH scope:2-13
Counter-flushing pressure:0.1-0.5Mpa
Recoil lavation quantity:1.5-2 time of water yields
Counter-flush time:60 second
Chemical cleaning frequency:The back wash water flux is lower than
initial 70% or TMP is higher than 0.03Mpa
Chemical cleaning time:10-30minutes
Quality Assurance

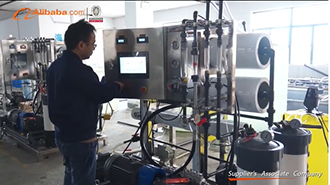

(1).Pre-shipment testing and commissioning and machine inspection
(2).Non-destructive testing of welds according to specifications
before delivery
