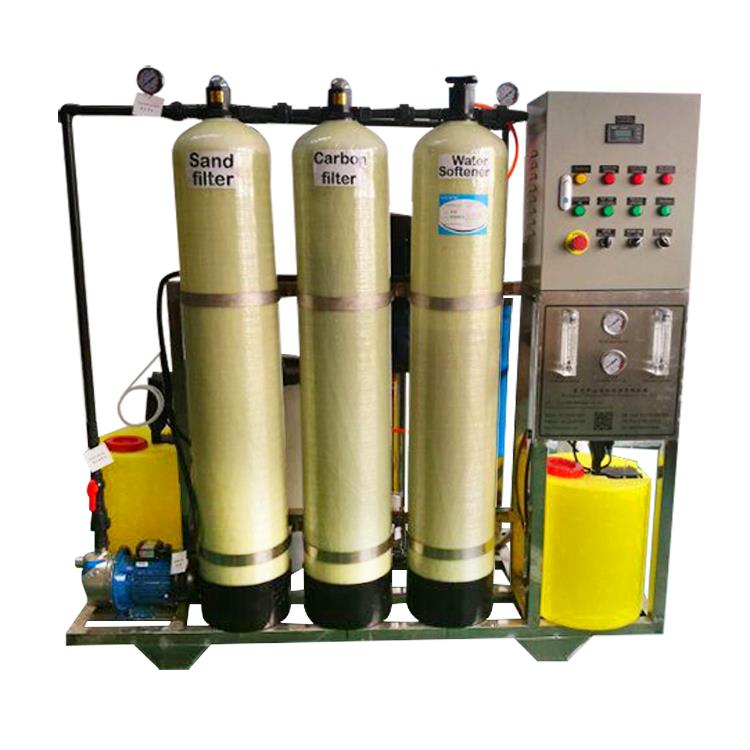

Water filters systems,small scale water purification plant drinking water treatment machine

Ask Lasest Price
Brand Name :	JISHUI
Model Number :	HYRO-500L/H
Certification :	ce, GS, ISO9001
Supply Ability :	150 Piece/Pieces per Month
Price :	2000-4000

Add to Cart

Product Details
Company Profile

Water filters systems,small scale water purification plant drinking water treatment machine

Product parameters
Model	HYRO-0.5T/H(500L/H)	Water production	0.5ton / hour
Raw water source	Tap water /borehole water/surface water	Water quality	drnking water /pure water etc
TDS (assumed)	<1000PPM	Water quality	<10PPM
control method	Automatic, PLC+HMI (optional)	Operating temperature	5-45℃
Use environment	Room temperature, level ground, drain	Voltage frequency	Customized on demand
package	Fumigation wooden box	transport	sea transportation

Product performance description

reverse osmosis(reverse osmosis,shortened as RO technology) uses pressure as driving
force.By the selective membrane,the solvent and the solute in the solution will be separated.RO membrane can block off all the
solutes,the inorganic molecule and organic substance with its molecule weight more than 100.The desalting rate of the solution
salt can reach 99%,thus it is widely applied to each field production of the household drinking water and the purified water sued
in industry.

Process Flow

RO flow

feed water tank →Feed water pump→ muti-media filter/sands filter→ active carbon filter→ water softener or inhibitor dosing (for selection)→Cartridge/Security/Micro filter→high-pressure/Centrifugal pump→ Reverse Osmosis system→ RO purified tank

Features of RO purified water syste

(1).Steady output water quality,consecutive running and apply the water quality widely;
(2).Easy operation,large water output and low running cost;
(3).Advanced technology, convenient for maintenance and small installation area;
(4).Physical desalting methods,Chemical-free regeneration,hazard-free waste liquid discharge,benefit to the vironment.

Hai yuan Standard Features

(1).Automatic inlet shut-off valve ,Perform cleaning at regular intervals without human intervention
(2).two flow meters,Digital display flow
(3). Easy operation ,one button can achieve the control on water produce and stop.
(4).ro membranes manual wash with medicine
(5).Pure water high water level auto stop,low water auto start
(6).Multi-phases pump protected without water
(7).Protected when no power,poor power,larger electrical current,short circuit,Creepage of electricity.
(8).Combined system,easily install and maintain
(9).Environmental Friendly,The movement and service cost is low
(10).which can realize the area is small
(11).The water quality has the best stability
(12).Support customization, welcome to email to discuss order

After-sale service and Quality guarantee

1 year basic guarantee against manufacturing defects and faulty workmanship from the date of dispatch, and goods inspection and installation guideline for the preparation work. (Except the consumptive material like UF membranes, RO membranes, PP sediment,active carbon, quartz sand , etc .) But due to force majeure (like fire, flood, earthquake, etc) and artificial damage from the buyer, the seller is not responsible for warranty glitches.

Installation and testing service
If the user needs our technicians, we can send skilled technicians for the installation of the machine and keep duration of stay in workshop, the buyer should pay for the wage, the fee of round-trip flight ticket, accommodation, visa, insurance and Chinese translator.
