Reverse osmosis system ,marine reverse osmosise water maker,sea water filters

SWRO seawater desalination technology

There are different production capacities of SWRO water system ,1T/day to 10000T/day,etc.

Seawater desalination equipment for boat with a capacity 1T/day to 5T/day.

Main Technical parameters

Application range:TDS≤35000mg/L

Recovery rate:10%-50%

Water temperature range:5.0-30.0℃

Power:less than 2kw.h/m3

Output water quality:TDS≤600mg/L,reach the standard of WHO drinking water standard.

Characteristics

(1).It enables to treat seawater and brackish water meet to the world Health Organization(WHO)drinking water standard with high quality--It is fit for yacht,fishery,ocean ship,island and other poor water area.

(2).It can be used in different electric source according to the demand ofcustomers:380v/50hz,220v(440v)/60hz/

(3).Easy operation,one button can achieve the control on water produce and stop.

(4).Compact size,light weight,easy installation and commissioning.

Application Scope

Seawater desalination equipment with a capacity of one ton per day:supplies fresh water for 3-5 people drinking.

Seawater desalination equipment with a capacity of two ton per day:supplies fresh water for 8-10 people drinking.

Seawater desalination equipment with a capacity of three ton per day:supplies fresh water for 10 people drinking.

Seawater desalination equipment with a capacity of five ton per day:supplies fresh water for 20 people drinking.

seawater ro system Specification model

Specification model

Please see more similar products, there is always one that belongs to you, if there is no trouble to

contact our employees.

Standard Features

(1).Automatic inlet shut-off valve ,Perform cleaning at regular intervals without human intervention

(2).two flow meters,Digital display flow

(3).Online monitoring conductivity meter to determine whether the water quality meets the requirements.
(4).Programmable PLC controller,One-button operation is simple and convenient, and the actions of each component such as:water pump, valve, water tank liquid level, dynamic monitoring screen; humanized alarm recording and prompt function, etc.

(5).RO membranes manual wash with medicine

(6).Pure water high water level auto stop,low water auto start

(7).Multi-phases pump protected without water

(8).Protected when no power,poor power,larger electrical current,short circuit,Creepage of electricity.

(9).Combined system,easily install and maintain

(10).Environmental Friendly,The movement and service cost is low

(11).which can realize the area is small

(12).The water quality has the best stability

(13).Support customization, welcome to email to discuss order

Quality Assurance

(1).Pre-shipment testing and commissioning and machine inspection

(2).Non-destructive testing of welds according to specifications before delivery

(3).Warranty:2year

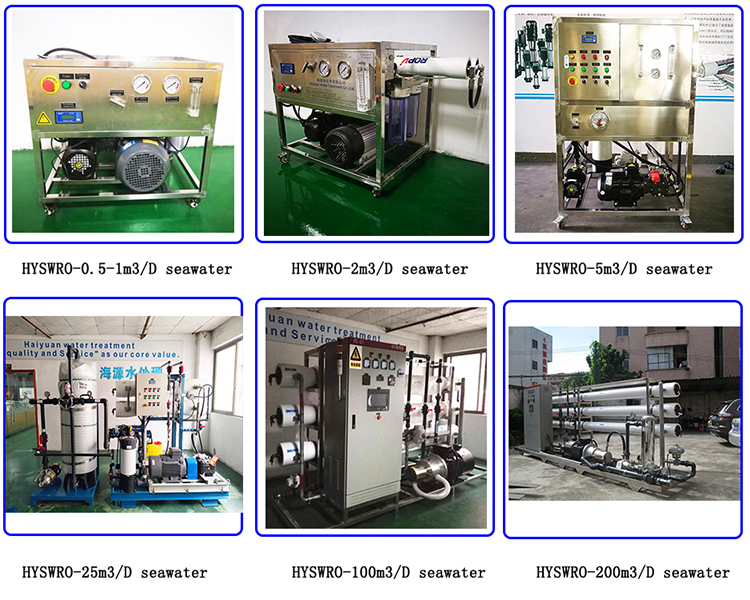

Haiyuan factory real photos
