Features of river water purification treatment system
1. River water purification treatment system /plant uses automatic
control and semi-control.Pretreatment parts can adopt fiber glass
or stainless steel material.
2. River water purification treatment system has protected when no
power, poor power, larger electrical current, leakage, short
circuit.
3. It is compact, easy installation.
4. River water purification treatment plant equipped with PLC and
touch screen control and remote login .(Siemens PLC and Touch
screen or Mitsubish PLC and tourch) This parts is optional.
5.It produces as per ISO and SGS standard and main parts
accessories have obtained CE certification.

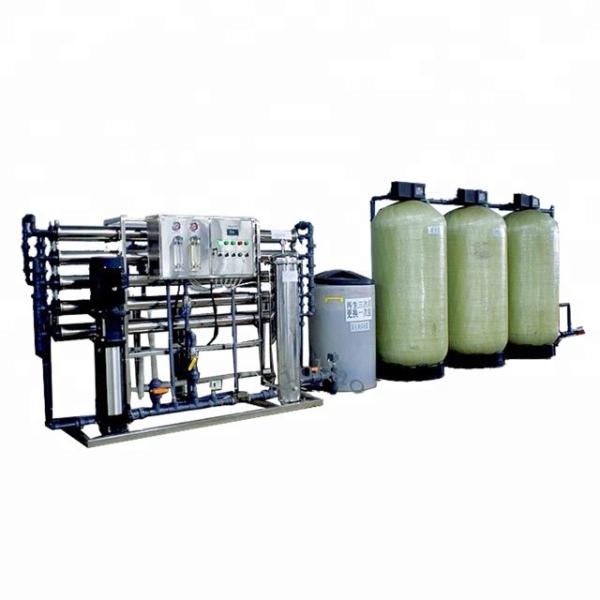

Photo of Small river water purification treatment plant
Model
Capacity (LPH)
Membrane Quantity
Size(L*W*H) (mm)
Weight (Kg)
HY-RO-300
1500 GPD (300LPH)
4040*1
1550*900*1820
150
HY-RO-500
3000 GPD (500LPH)
4040*2
1550*900*1820
250
HY-RO-1000
6000 GPD (1000LPH)
4040*4
1980*900*1940
450
HY-RO-2000
2000LPH
4040*7
4800*700*2050
700
HY-RO-3000
3000LPH
4040*10
6000*800*2200
800
HY-RO-5000
5000LPH
8040*4
7000*900*2400
1000
HY-RO-8000
8000LPH
8040*8
8000*1000*2700
1600
HY-RO-10000
10000LPH
8040*9
8200*1600*3000
2200
HY-RO-15000
15000LPH
8040*15
8600*1700*3100
2800
HY-RO-20000
20000LPH
8040*20
10000*1700*3200
3500
HY-RO-25000
25000LPH
8040*25
5000*1800*3300
4200
HY-RO-30000
30000LPH
8040*30
7000*1900*3500
5000
HY-RO-50000
50000LPH
8040*50
7000*2300*3800
8500
Process Description

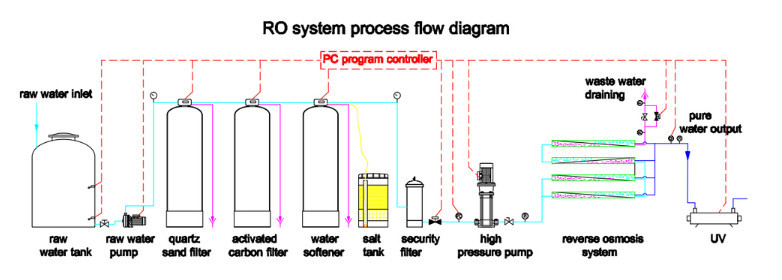

Process Flow of Small river water purification treatment system
Source tank →Feed water pump→ Muti-media filter(sands filter)→
Aactive carbon filter→ Water softener (or inhibitor dosing)→Cartridge/Security/Micro
filter→High-pressure/Centrifugal pump→ Reverse Osmosis system→ RO
purified tank →Ultraviolet sterilizer.
Process Introduction of Small river water purification treatment
plant
NOS.
Items
Information
1. Pre-treatment part of river water purification plant
1.1
Sand filter
Remove turbidity, SS matter, organic matter, colloid, etc.
1.2
Active carbon filter
Remove color, free chloride, organic matter,
harmful matter, etc.
1.3
Water softener
Soft water and reduce it's hardness.
2. RO part of river water treatmant plant
2.1
High pressure pump
Provide power for RO.
2.2
PP filter
Prevent large particles, iron, dust, SS matter,
impurity into RO membrane.
2.3
RO membrane
Remves: lead, cooper, barium, chromium, mercury,
sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
3. Electricity control system
3.1
PLC+Touch screen control system
Import from Japan and Taiwan. WeiNveiw, Mitsubishi.
3.2
Electrivity components
Import from German. Schneider, Omron.
3.3
Pipe and fitting
Adopt domestic famous brands.
Company Information
We have 2 factories +300 workers+ Qualified engineer+ Overseas
service
Certifications
We are the right supplier. You know why?
Our Services
24h after-sales service online
12 months warranty and free maintenace cost
whole life free technical support
Track the order until you get the goods
We can provide oversea service (Go to on site for installation and commission)

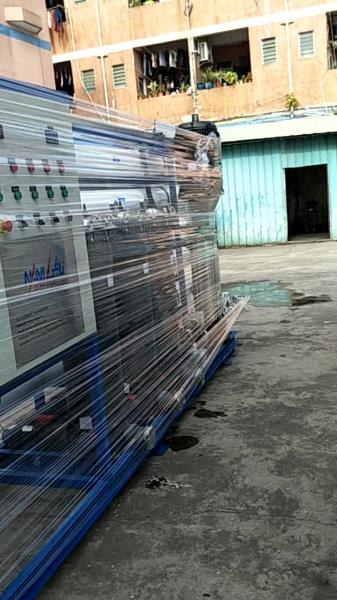

Customers photos
FAQ
Are you a factory or trading company?
We are a factor and also the direct manufacture, professional water
treatment equipment manufacturer with about 10 years experience.
What's your warranty policy?
1 year warranty after receipt check upon delivery. And we will
comprehensively provide you all kinds of technical support services
in after-sale.
how can I recieve my goods?
Usually we need 15 prduction days and 20 days for shipping.
How to control quality?
All products adopt RO system simulation software design.
How long the consumables should be replaced?
No.
Consumables
Replace period
1
Quartz Sand
1 year
2
Activated Carbon
1 year
3
Water Softening Resin
1 year
4
PP Filter
30~60 days
5
RO Membrane
2~3years
6
UV Lamp
9000 hours
7
Industrial Salt
7 days
8
Other parts
Send inquiry to get the information
All the consumable replace period will be depond on the feed water
quality good or bad.
