Industrial reverse osmosis salt water purification machine
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY
PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer
Overseas service
Industrial reverse osmosis salt water purification machine
1. Water purification machine use automatic control and
semi-control .Pretreatment parts can adopt fiber glass or stainless
steel material.
2.Salt water purifcation machine has protected when no power, poor
power, larger electrical current, leakage, short circuit.
3.Industrial reverse osmosis machine is compact, easy installation.
4.Reverse osmosis water purification machine equipped with manual
and auto control based on user needed.
5. Haiyuan Commercial water purification machine produce as per ISO and SGS standard and main parts accessories
have obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any
problem when arrived site.
7.What we provide not only the good products, but also our whole
team, the quality, experience, and service.
Features of water purification machine
Reverse osmosis water purification systemUseautomatic controland semi-control, pretreatment parts can adopt fiber glass or
stainless steel material.
River water purification system Protected when no power, poor
power, larger electrical current, leakage, short circuit.
Industry water purification system for industry using is compact,
easy installation.
large scale water purification system for industry usingequipped with PLC and touch screen control and remote login
.(Siemens PLC and Touch screen or Mitsubish PLC and tourch) This
parts is optional.
River water purification system for industry using device produces
as per ISO and SGS standard and main parts accessories have
obtained CE certification.

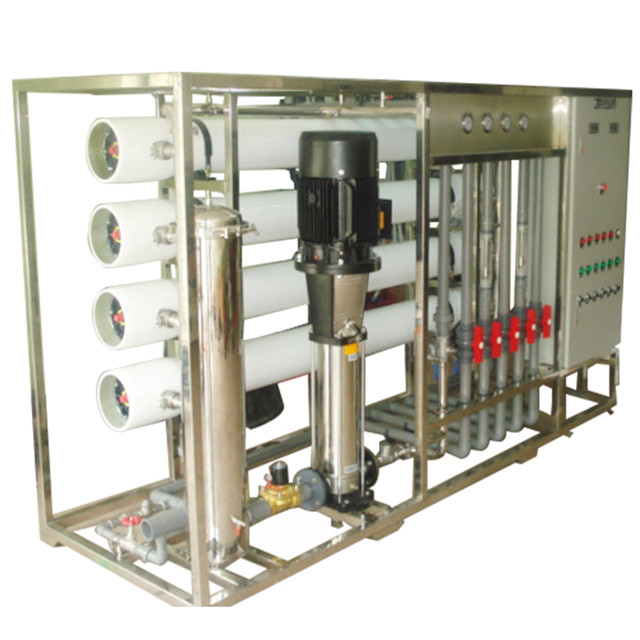

Photo of industrial reverse osmosis machine
Model
HY RO- 25m3/Hr
Process (depend on water quality)
Pre-treatment+RO
Power
37.5KW
Power supply
380V 50Hz~60Hz
Raw water pump
ZS65-40-200/7.5
Sand filter, Carbon filter
1800*2900 Carbon steel 2pcs
Security filter
40" Φ325´1000´15 piece
High pressure pump
CDLF32-130/30KW
Reverse osmosis (RO)membrane
8040 25piece
Membrane housing
8040*5 5pcs FRP
Source of water forsalt water purifcation machine :
Water treatment systems are designed to target a great number of
different contaminants that exist in a wide range of water sources.
These water sources can consist of:
· Seawater: Seawater or seaside borehole water with TDS ranging from 19000ppm
to 45000ppm. It is best to drill near the sea and pump the seawater to the
source water tank first. Because the seawater has penetrated and
filtered once through the drilling, thus the water obtained shall
be better than direct water from sea.
· Brackish water: Underground water near desert areas and sea with TDS ranging from
19000ppm to 45000ppm.
· Tap Water: Tap water contains the lowest amount of TDS in comparison to the
other water sources, generally lower than 1000 ppm.
· Surface water: River water, lake water, pond water, require pre treatment filter
to remove suspended solids and turbidity from surface water. which
ultimately leads to particles and sediments being picked up.
· Reuse water: After the production process the water contains certain
impurities, if you would like to resue the water, it can be
retreated and back to production, generally require detailed water
report to show the concentration of impurities and customize the
treatment.
These salt water purifcation machine specifically eliminate these
unwanted impurities from the water in order to produce clean,
freshwater.
Process Description
Process Flow of water purification machine
Source tank →Feed water pump→ Muti-media filter(sands filter)→
Aactive carbon filter→ Water softener(or inhibitor dosing)→Cartridge/Security/Micro
filter→High-pressure/Centrifugal pump→ Reverse Osmosis system→ RO
purified tank →Ultraviolet sterilizer
Process Introduction of salt water purifcation machine
NOS.
Items
Information
1. Pre-treatment part
1.1
Sand filter
Remove turbidity, SS matter, organic matter, colloid, etc.
1.2
Active carbon filter
Remove color, free chloride, organic matter,
harmful matter, etc.
1.3
Water softener
Soft water and reduce it's hardness.
2. RO part
2.1
High pressure pump
Provide power for RO.
2.2
PP filter
Prevent large particles, iron, dust, SS matter,
impurity into RO membrane.
2.3
RO membrane
Remves: lead, cooper, barium, chromium, mercury,
sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
3. Electricity control system
3.1
PLC+Touch screen control system
Import from Japan and Taiwan. WeiNveiw, Mitsubishi.
3.2
Electrivity components
Import from German. Schneider, Omron.
3.3
Pipe and fitting
Adopt domestic famous brands.
Company Information
We have 2 factories +300 workers+ Qualified engineer+ Overseas
service
Certifications
We are the right supplier. You know why?
Customers photos
Buying Guides
Industrial reverse osmosis salt water purification machine Buying
Guides
To find the most appropriate water purification machinefor your use, please have the following information ready
·Product water flow rate (m3/hr,m3/day,Liter/hr,GPM,GPDetc.)
··Product water purpose(drinking, irrigation, industry process or
others)
·Feed Water TDS(Total dissolved solids).Is it fromBorehole/salt/brackish/lake water
·Iron
·Manganese
·TSS(Total Suspended Solid)
·SDI(Silting Density Index)<3
·Water must be free from oils and grease
·Chlorine must be removed
·Power(110/220/380V/415V/460V,50 or60 Hz)3 phase.
· It is necessary to make water analysis reprot for borehole
water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water
analysis report.
