Containerized bore hole large scale salty water seawater
desalination machine sea well water desalination machine for
irrigation
Salted water is not always the same. Depending on whether they come
from warm or cold oceans, closed or open seas, their salt content
will vary. This is a short comparison between samples:
Brackish water:0,5 to 10 g/l, (TDS range: 500ppm to 10000ppm)
Northern Sea close to estuaries :21 g/l (TDS range: 10000ppm to
21000ppm)
Atlantic Ocean :35 g/l (TDS 35000ppm)
Mediterranean Sea :38 g/l (TDS 38000ppm)
Arabian Sea :45 g/l (TDS45000ppm)
Red sea: 41g/L (TDS 41000ppm)
Dead Sea :300 g/l. (TDS 300,000ppm)
Different Water TDS(Total Dissolved Solids) compare and usage
| Raw water/Application | Bottled water,
Bag water | City tap water | Brackish water | Seawater |
| TDS Range | 2-10ppm | 100-1000ppm | 2000-20000ppm | 20000-40000ppm |
| Direct Drinking | Yes | Yes/No | No | No |
Cooking, human
consumption, washing | Yes | Yes | No | No |
Irrigation, Industry,
Animal Drinking | Yes | Yes | No | No |
SWRO Process steps introduction
| Pre-treatment | Feed water pump, Stainless steel 316L | Provide pressure for filters; |
| Quartz sand filter | Remove suspended particle and large impurity. In this system; |
| Active Carbon Filter (option) | Remove the color, free chloride, organic matter, harmful matter,
ect; |
| Anti-scalant system | To add chemicals to remove some impurities and prolong
thememebranes using/washing time(prevent membrane blocking) |
| Manual/Auto control valves | Flushing sand/carbon filter after some time |
| 5micron filter | Remove larger than 5 micro colloids in the water. In this system |
| 1micron filter | Remove larger than 1 micro colloids in the water. In this system |
| Seawater RO Main Part | High pressure pump, Stainless steel 316L | Provide the high pressure to RO membrane; |
| Ro membranes | More than 98% desalination rate, can remove ions except H2O. |
| CIP system | To washing the membranes when it is blocked after using for long
time |
| Electronic control panel | PC controller or PLC and HMI controller |
SWRO Process steps introduction
| Below is 20GP container capacity paramete |
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-20GP-20 | 4040*8 | 20 | 2800 | 4.0-6.5 | 220V-440V/
50Hz-60Hz |
| HYSW-20GP-26 | 4040*10 | 26 | 2860 | 4.0-6.5 |
| HYSW-20GP-30 | 4040*12 | 30 | 2920 | 4.0-6.5 |
| HYSW-20GP-40 | 4040*16 | 40 | 3030 | 4.0-6.5 |

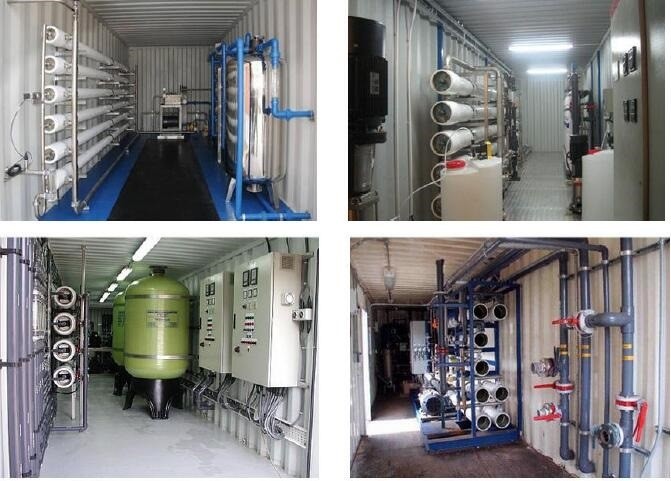

20GP Container-frame:
20 ft according to ISO- standard (5.85x2.23x2.15 meter). | |
·suit for long-distance transport
·easy installation
·save space for customers
More detail need customized according user requirement. |
| Below is 40HGP container capacity paramete |
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-40HGP-60 | 8040×6 | 60 | 4900 | 4.0-6.5 | 380V-440V
/50Hz-60Hz |
| HYSW-40HGP-80 | 8040×8 | 80 | 5050 | 4.0-6.5 |
| HYSW-40HGP-100 | 8040×10 | 100 | 5150 | 4.0-6.5 |
| HYSW-40HGP-120 | 8040×12 | 120 | 5230 | 4.0-6.5 |
| HYSW-40HGP-150 | 8040×16 | 150 | 5530 | 4.0-6.5 | |
Container-frame:
40 ft according to ISO- standard (12,4 x 2,4 x 2,8 meter). |
·suit for long-distance transport
·easy installation
·save space for customers
More detail need customized according user requirement. |
Guying Guides
To find the most appropriate desalination for you, please advise following information.
1. Product/Clean/output water flow rate ( m3/hr, m3/day,
Liter/hr,GPM,GPD etc.)
2· Product water purpose(industry process/driking water or others)
3 . Power (220/380V/415V/460V, 50 or 60 Hz) 3 phase.
4. If source water is tap water no need analysis report(We will make design as per TDS less than 1500ppm)
5. Source water from borehole/salt/brackish/lake water It is necessary to make water analysis report( TDS,Iron, Manganese, TSS, SDI or related parameter)
6. Any other detail requirement.please tell me as more as you know.
Contact us WAP+8613922972795, or+8613532836525
