350m3/hour project Industrial effluent water after the cooling o350m3/hour project Industrial effluent water after the cooling of
reactors
Haiyuan water treatment team suppliy pharmaceutical waste deep treatment solution for belarus
please check below client question and we solution for 350m³/hr big
project .
Here are details of our discssion with customers :regarding the
350m³/hr project,at the moment the design of the sewage treatment
plant of the metallurgical plant is in progress ,industrial
effluent is water after cooling of reactors and is not highly
contaminated:
Parameter
Before request
After request
Remark
Suspendedproducts
47 mg/
20-30 mg/l
Petroleum products
17 mg/l
3 mg/l
Salinity
17 mg/l
1300 mg/l
Total iron
0,34 mg/L
0,34 mg/L
Total hardness
27,3 mg
2,0-2,5 mg
Chlorides
1093 mg/L
250 mg/L
Sulfates
442 mg/l
350 mg/l
COD
mgO2/dm3
15-20 mg/l
BOD
136 mgO2/l
15-20 mg/l.
The first stage we plan to put a drum sieve to delay mechanical
impurities, and then flotation units (they will significantly
reduce the content of suspended solids, petroleum products, COD,
BOD, but will add some chlorides/sulfates, depending on the
coagulant used).
Approximately after flotation, the content of suspended solids will
not exceed 15-20 mg/l, petroleum products less than 1 mg/l, COD,
BOD by our experience after flotation are reduced by 5-10 times.
Taking into account the fact that it is necessary to reduce salt
content - practically the only option we see RO. However, COD, BOD
and suspended solids content after flotation is higher than it is
necessary for correct operation of RO, so we consider it necessary
to put filtering columns with sand, coal and ion-exchange resin.
Since you have a lot of experience with RO equipment and filter
columns, please guide us.
Regarding evaporation, reverse osmosis produces about 10-15% of the
total salt concentrate water. We are laying with the reserve -
about 45m3 / hr. However, as already mentioned earlier - you have
Then our engineers provide customers with the following process
flow chart:

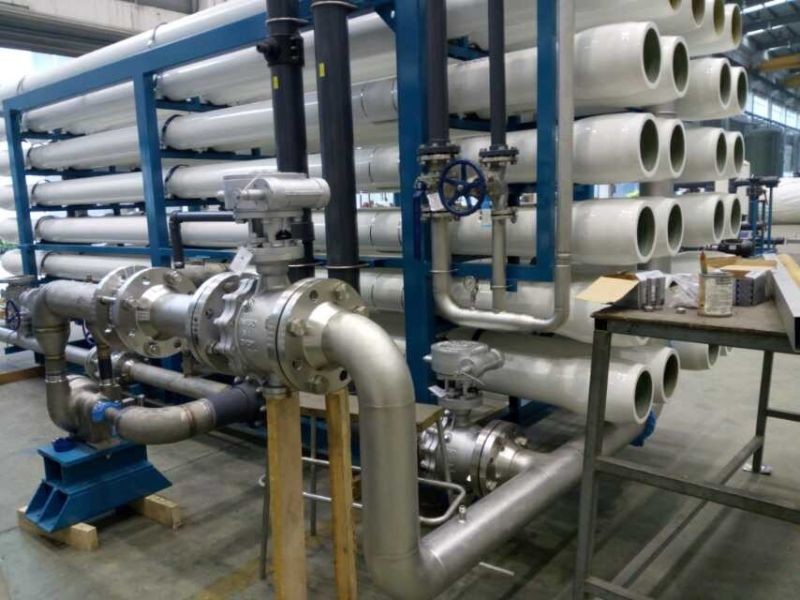

Feed water tank----Feed pump----Quartz sand filter----Activated
carbon filter (with backwash pump)----precision
filter----pretreatment water tank----1 stage RO booster
pump----scale prevention device----precision filter----1 stage high
pressure pump----1 stage RO system (CIP)----product water tank (1
section of concentrated water tank)
1 stage concentrated water tank----2 stage high pressure pump----2
stage RO system----product water tank
Place of Origin
CN;GUA
Brand Name
JISHUI
Model Number
HY seawater desalination
Type
sea water desalination
After-sales service provided
Engineers site service
Feed TDS
<35000 PPM
Living pure water TDS
<600 PPM
Recovery efficiency
40%~55%
Control method
Full control or Semi control
warranty
1-3 years
Booster pump
CNP/Grundfos
Size
Customized by client's order
Name
Sea water desalination
5000LPD for boat 1000LPD for boat 10000LPD seawater
Haiyuan water treatment can supply professional total water
solution for each user. The right designs here waiting for you. Provide solution with our sincerity and technology. Take" quality first, Service first" as our culture. To be friends, to be partners. Each plant can be test in factory for three days before dispatch. Business scope: Reverse osmosis(RO) water treatment plant/system Deionized water treatment plant for industrial Ultrafiltration (UF) water purification plant/system Water softener/ Demineralized Water Treatment Plant Underground water Iron/manganese removal system River/surface water treatment system Seawater water desalination system EDI deionized /Demineralized water treatment plant Intergrated domestic Sewage treatment plant Recycle water treatment plant for waster reuse
Process_1
Process_2
Process_3
Process_4
Process_5
Process_6
Q: Install and commissioning questions.
A: 1st. All the plants will be commissioning and running well for 3
days then delivery. Installation video, photos, operating manual
will send to client with the plants.
2nd. Clinet can come to factory for training how to installation
and maintenance.
3rd. Some main parts will be guaranty two years.
4th .Engineer can go to overseas for installation and
commissioning.
Q: How to control quality?
A: 1. Our company has passed ISO9001:2008 and SGS certification and
all manufacture processes are conducted by the standard strictly.
2. All products adopt RO system simulation software design.
3. All auxiliary parts adopt international and Chinese famous brand
products.
4. Before delivery time ,all complete sets will test run for 3 days
continuously After quality inspection, they can be transferred to
the customers
FAQ
FAQ:
Install and commissioning questions.
1st. All the plants will be commissioning and running well for 3 days
then delivery. Installation video, photos, operating manual will
send to client with the plants.
2nd. Clinet can come to factory for training how to installation and
maintenance.
3rd. Some main parts will be guaranty two years.
4th. Engineer can go to overseas for installation and commissioning.
How to control quality?
1. Our company has passed ISO9001:2008 and SGS certification and
all manufacture processes are conducted by the standard strictly.
2. All products adoptRO system simulation software design.
3. All auxiliary parts adopt international and Chinese famous brand
products.
4. Before delivery time ,all complete sets will test run for 3 days
continuously After quality inspection, they can be transferred to
the customers
5. We have obtained many patents certification from government.
