    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System

    Ask Lasest Price
    Supply Ability : 50 Set/Sets Per Month Ion Exchange
    • Product Details
    • Company Profile

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System

    Product Description

    Ion exchange machine,Ion exchange equipment,Ion exchange system

    Product Description

    Please Attention

    HY FACTORY OFFER YOU :

    1: FACTORY DIRECT PRICE.

    2: NICE QUALITY.

    3: ONLINE PAYMENT.

    4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY PROBLME.

    5: AFTER SALES SERVICES 24/7

    6. Letters patent

    7. ENGINNER CAN BE OVERSEA INSTALLNATION

    We have 2 factories +300 workers+ Qualified engineer+ Engineer Overseas service

    Ion exchange machine,Ion exchange equipment,Ion exchange system

    Process function description

    1. Ion exchange machine use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.

    2.Ion exchange system has protected when no power, poor power, larger electrical current, leakage, short circuit.

    3.Ion exchange equipment is compact, easy installation.

    4.Ion exchange equipment equipped with manual and auto control based on user needed.

    5. Haiyuan ion exchange system produce as per ISO and SGS standard and main parts accessories have obtained CE certification.

    6. All the ion exchange mixed bed will be commissioning well. Make sure don't have any problem when arrived site.

    7.What we provide not only the good products, but also our whole team, the quality, experience, and service.

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System

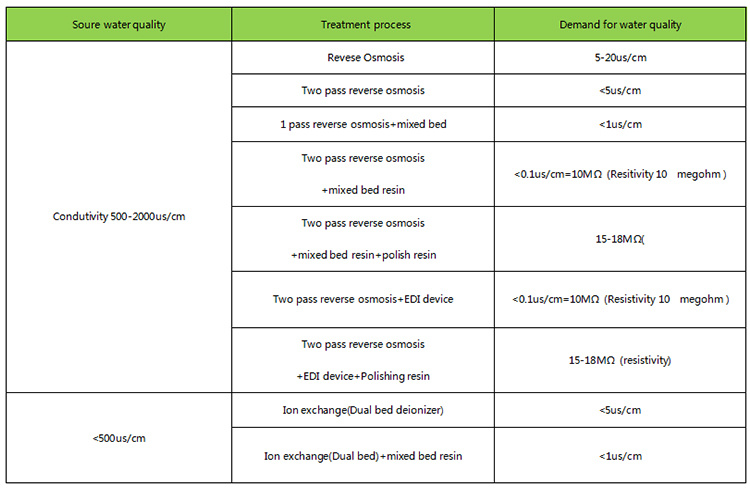

    FEED WATER QUALITY AND TREATMENT TECHNOLOGY OF ion exchange system

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System

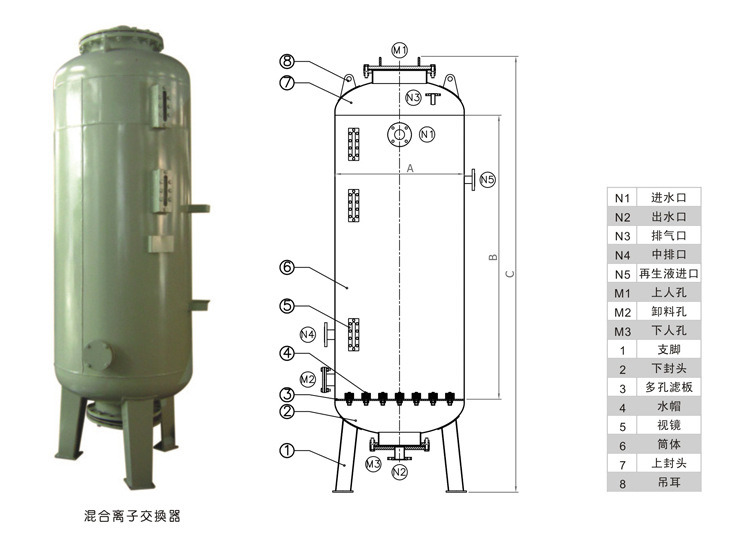

    Ion exchange equipment

    Mixed bed ion exchange is an ion exchange process for polishing of demineralised water, meaning for removal of trace dissolved solids from water.

    A mixed bed ion exchanger (also: mixed bed polisher, mixed bed filter) is a vessel filled with a mixture of cation exchange resin and anion exchange resin. During service, water flows through this resin mixture. Cations dissolved in the water are then exchanged for hydrogen ions (H+), while anions dissolved in the water are exchanged for hydroxide ions (OH-). Hydrogen ions and hydroxide ions react to water.

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System With increasing service life, the ion exchange resins deplete. Depleted mixed bed resins are regenerated, usually with both hydrochloric acid (HCl) and sodium hydroxide (NaOH). With each regeneration, potentially acidic or alkaline waste water is produced, which may need to be neutralised. In case of smaller mixed bed exchangers, the ion exchange resin is sometimes also discarded and exchanged once depleted, rather than regenerated.

    Usually, a mixed bed ion exchanger is used either as a last polishing step downstream of another demineralisation process, or as a working mixed bed for demineralisation of already partly demineralised or low-TDS water (e.g. condensate).Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System

    Advantages:

    · Consistent high-purity water

    · Can handle high variations in feedwater chemistry

    · Proven, long operating history

    · Most plant operating personnel are familiar with this process


    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System


    Process Introduction

    Process introduction of ion exchange system

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System

    Process flow of ion exchange machine

    NOS.

    Items

    Information

    1. mixed bed demineralizer Pre-treatment part

    1.1

    Sand filter

    Remove turbidity, SS matter, organic matter, colloid, etc.

    1.2

    Active carbon filter

    Remove color, free chloride, organic matter,

    harmful matter, etc.

    1.3

    Water softener

    Soft water and reduce it's hardness.

    2. ion exchange water treatment Deionized water RO part

    2.1

    High pressure pump

    Provide power for RO.

    2.2

    PP filter

    Prevent large particles, iron, dust, SS matter,

    impurity into RO membrane.

    2.3

    RO membrane

    Remves: lead, cooper, barium, chromium, mercury,

    sodium, cadmium, fluoride, nitrite, nitrate, and selenium.

    3. industrial water treatment Deionized Water System system part

    3.1

    Ion exchange feed water pump

    Provide power for ion exchange system.

    3.2

    Anion and cation exchange filter

    Further removes ions in water.

    3.3

    Security fitler

    Prevent the resin leakage

    4. mixed bed demineralizer Electricity control system

    4.1

    PLC+Touch screen control system

    Japan Mitsubishi.siemens

    4.2

    Electrivity components

    Import from German. Omron.

    4.3

    Pipe and fitting

    Adopt domestic famous brands.

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System
    Certifications

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System


    Haiyuan workshop

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System

    Customers photos

    Ion Exchange Machine, Ion Exchange Equipment, Ion Exchange System

    Buying Guides

    Ion exchange machine,Ion exchange equipment,Ion exchange system Buying Guides

    To find the most appropriate ion exchange system for your use, please have the following information ready

    · Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)

    ·· Product water purpose(drinking, irrigation, industry process or others)

    · Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water

    · Iron

    · Manganese

    · TSS(Total Suspended Solid)

    · SDI(Silting Density Index)< 3

    · Water must be free from oils and grease

    · Chlorine must be removed

    · Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.

    · It is necessary to make water analysis reprot for borehole water,lake water, seawater.

    · If soure water is tap water no need end to us TDS or water analysis report.
