Mobile large sea water containerized borehole water seawater
desalination plant
Product Description
1. seawater desalination plant use automatic control and
semi-control .Pretreatment parts can adopt fiber glass or stainless
steel material.
2.sea water treatment system has protected when no power, poor
power, larger electrical current, leakage, short circuit.
3. sea water desalination system is compact, easy installation.
4.Reverse osmsosis plant equipped with manual and auto control based on user needed.
5. desalination systemproduce as per ISO and SGS standard and main parts accessories have
obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any
problem when arrived site.
7.What we provide not only the good products, but also our whole team, the quality, experience, and
service.
Features
Salted water is not always the same. Depending on whether they come
from warm or cold oceans, closed or open seas, their salt content
will vary. This is a short comparison between samples:
Brackish water:0,5 to 10 g/l, (TDS range: 500ppm to 10000ppm)
Northern Sea close to estuaries :21 g/l (TDS range: 10000ppm to
21000ppm)
Atlantic Ocean :35 g/l (TDS 35000ppm)
Mediterranean Sea :38 g/l (TDS 38000ppm)
Arabian Sea :45 g/l (TDS45000ppm)
Red sea: 41g/L (TDS 41000ppm)
Dead Sea :300 g/l. (TDS 300,000ppm)
SWRO Process steps introduction
| Pre-treatment | Feed water pump, Stainless steel 316L | Provide pressure for filters; |
| Quartz sand filter | Remove suspended particle and large impurity. In this system; |
| Active Carbon Filter (option) | Remove the color, free chloride, organic matter, harmful matter,
ect; |
| Anti-scalant system | To add chemicals to remove some impurities and prolong
thememebranes using/washing time(prevent membrane blocking) |
| Manual/Auto control valves | Flushing sand/carbon filter after some time |
| 5micron filter | Remove larger than 5 micro colloids in the water. In this system |
| 1micron filter | Remove larger than 1 micro colloids in the water. In this system |
| Seawater RO Main Part | High pressure pump, Stainless steel 316L | Provide the high pressure to RO membrane; |
| Ro membranes | More than 98% desalination rate, can remove ions except H2O. |
| CIP system | To washing the membranes when it is blocked after using for long
time |
| Electronic control panel | PC controller or PLC and HMI controller |
SWRO process flow chart:
Product Parameters
| HY-SWRO-8~9m3/hr(200m3/D) ro seawater desalination plant |
| Flow rate | 160T/day | Recovery rate | 45% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 53KW |
| Feedwater TDS | <45000ppm | freshwater TDS | <600ppm |
| Working pressure | <6Mpa | operating temperature | 5-45ºC |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | PH 3-10 |
| RO membrane housing | 8040-5 core,3piece | RO membrane | 15 piece |
| Equipment specification | 7.5X1.2X1.65(m) L*W*H | Net weight | 2500Kg |
| Packing specification(Plywood) | 7.5X1.2X1.65(m) L*W*H | Gross weight | 2800Kg |
Related SWRO
| Below is 20GP container capacity paramete |
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-20GP-20 | 4040×8 | 20 | 2800 | 4.0-6.5 | 220V-440V/
50Hz-60Hz |
| HYSW-20GP-26 | 4040×10 | 26 | 2860 | 4.0-6.5 |
| HYSW-20GP-30 | 4040×12 | 30 | 2920 | 4.0-6.5 |
| HYSW-20GP-40 | 4040×16 | 40 | 3030 | 4.0-6.5 |
20GP Container-frame:
20 ft according to ISO- standard (5.85x2.23x2.15 meter). | |
·suit for long-distance transport
·easy installation
·save space for customers
More detail need customized according user requirement. |
| Below is 40HGP container capacity paramete |
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-40HGP-60 | 8040×6 | 60 | 4900 | 4.0-6.5 | 380V-440V
/50Hz-60Hz |
| HYSW-40HGP-80 | 8040×8 | 80 | 5050 | 4.0-6.5 |
| HYSW-40HGP-100 | 8040×10 | 100 | 5150 | 4.0-6.5 |
| HYSW-40HGP-120 | 8040×12 | 120 | 5230 | 4.0-6.5 |
| HYSW-40HGP-150 | 8040×16 | 150 | 5530 | 4.0-6.5 | |
Container-frame:
40 ft according to ISO- standard (12,4 x 2,4 x 2,8 meter). |
·suit for long-distance transport
·easy installation
·save space for customers
More detail need customized according user requirement. |
Hai
Certifications
Company Profile
exbition

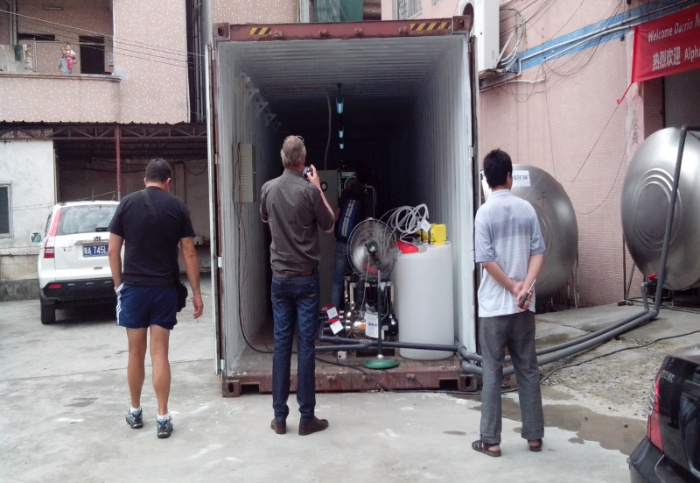

Case
Buying Guides
In order to make the quote best fit your demand, kindly confirm as
below:
1- Untreated water: from well water(send water test
report),seawater or other?
2- Treated water purpose: Meet city tap water standard for
humandaily use(TDS less than 500ppm) or other purposes?
3- Outpu capacity: How many liters/gallons per hour do you need?
4- Will the power supply 380v/50hz/3ph or others there?
