seawater desalination plant product description
It adopts reverse osmosis membrane isolation technology for
seawater desalination,widely recognized and most advanced
international technology.The RO desalination process works
effectively under normal temperature environment.so it is cost save
and lower power consumption.

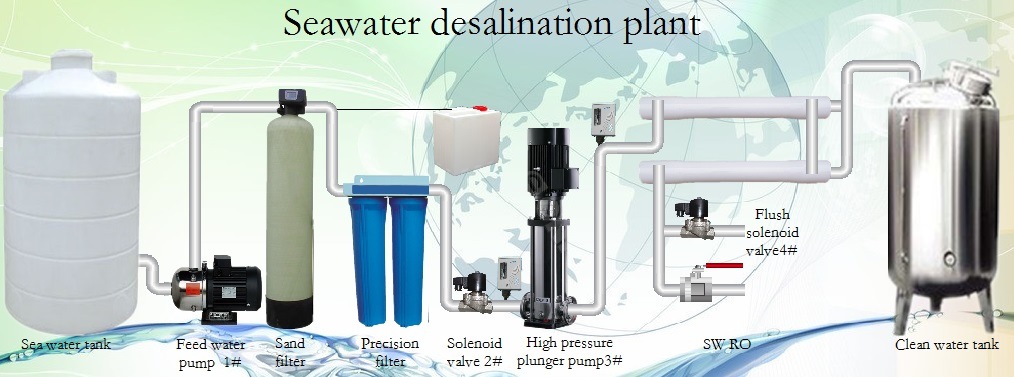

seawater desalination plant Process Flow
Seawater tank →Feed water pump→ sand filter→ inhibitor dosing
→Security/Micro filter→high-pressure pump→SW Reverse Osmosis system→ RO clean water tank
→ultraviolet sterilizer(for selection)

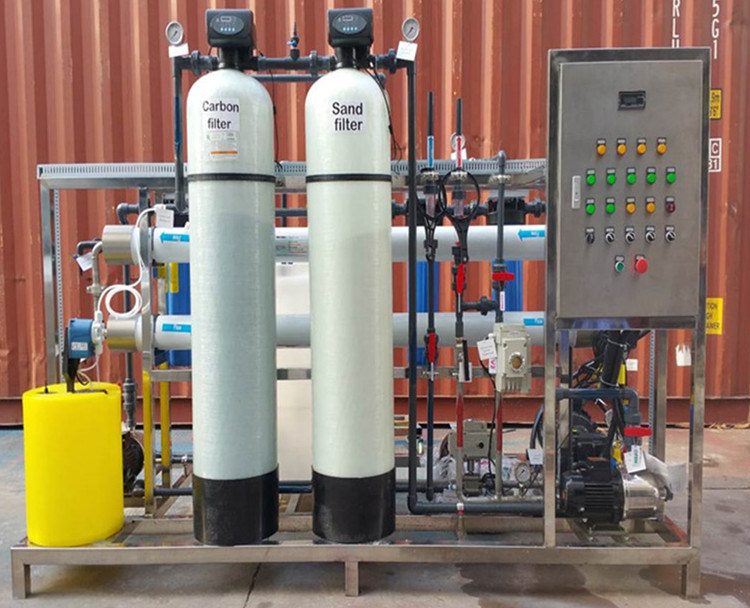

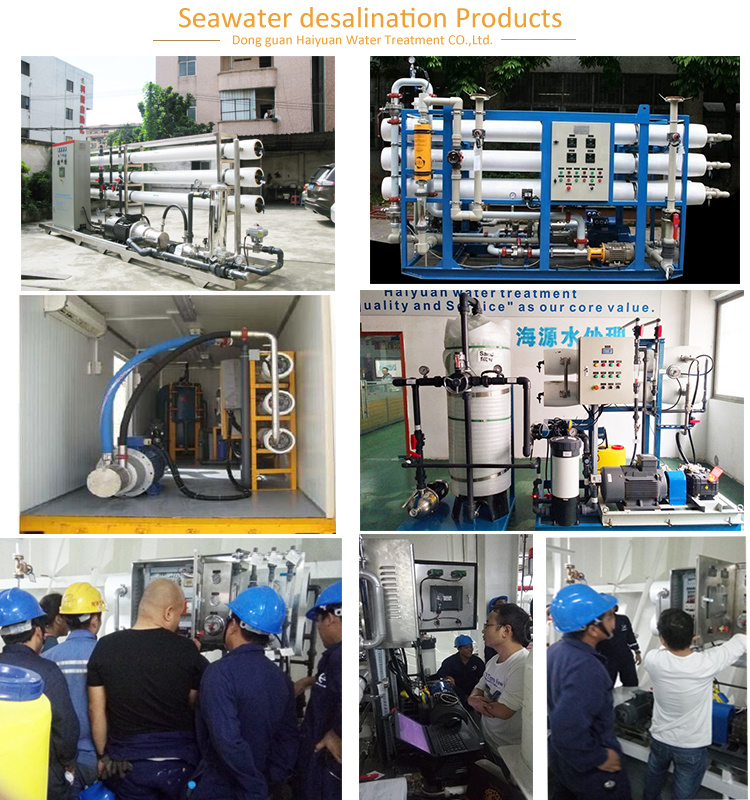

Seawater desalination product picture
Dong guan Haiyuan Water Treatment Co.,Ltd.
seawater desalination plant Product parameters
Seawater desalination-Single RO Water treatment |
model | HYSWRO-10m3/D | Water production | 10m3/D |
Operating temperature | 5-45 | Work pressure | Less than 1000 psi |
Material | FRP+PVC | Desalination rate | 99.7% |
control method | Automatic, PLC+HMI (optional) | Voltage frequency | 220V/240V/380V/400V/440V 50HZ 60HZ |
Use environment | Room temperature, level ground, drain | package | plywood case |
transport | sea transportation | Whether to customize products | yes |
Raw water | Seawater/brackish water/surface water TDS<35000mg/l (ppm) |
output water quality use | Hydroponics agriculture/industrial/Commercial/Drinking TDS<500mg/l (ppm) |
seawater desalination plant Standard Features
(1).Automatic inlet shut-off valve ,Perform cleaning at regular
intervals without human intervention
(2).two flow meters,Digital display flow
(3).Online monitoring conductivity meter to determine whether the water
quality meets the requirements.
(4).Programmable PLC controller, Easy operation ,one button can achieve the control on water produce
and stop.
(5).RO membranes manual wash with medicine
(6).Pure water high water level auto stop,low water auto start
(7).Multi-phases pump protected without water
(8).Protected when no power,poor power,larger electrical current,short
circuit,Creepage of electricity.
(9).Combined system,easily install and maintain
(10).Environmental Friendly,The movement and service cost is low
(11).which can realize the area is small
(12).The water quality has the best stability
(13).Support customization, welcome to email to discuss order
Quality Assurance
(1).Pre-shipment testing and commissioning and machine inspection
(2).Non-destructive testing of welds according to specifications
before delivery
(3).Warranty:1-2year
