SWRO Desing concenpt
Haiyuan Design concept:
1- Water desalination device Pipe line: Low pressure use UPVC pipe,
High pressure use SS316L Corrosion resistance,To use less bend pipe, reducing pipe and valve.
2-Mobile desalination plantTo use hose which could reduce vibration
and lower noise.
3- Portable desalination plant Alarm reminder when there is any
problem.
4-Water desalination device All the working process and alarm will be showed on the touch
screen.
5-Some supplier use the stainless steel material make the machine
whole frame.
Our plant use the stainless steel material SS316 material for
frame.
6-Some supplier use the Italy AR brand brass high pressure pump.
The brass cannot withstand for long time seawater corrosion. Maybe working for 6 months. Some part will rusting.
Sea water process

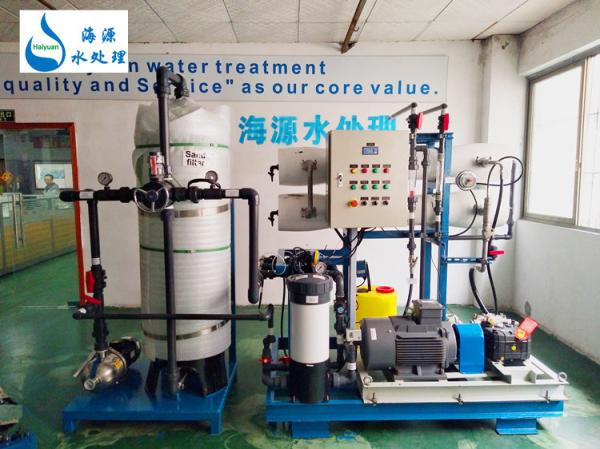

Portable seawater desalination for boat and other small house process flow:
Sea water tank →Feed water pump→ 5 micron filter→ 1micron filter→
Plug pump→ Reverse Osmosis system→ RO purified tank →Use point
purified water tank.
NOS. | Items | Information |
1. Portable seawater desalination for boat and other small house Pre-treatment | Sea water tank | Store sea water, let it have a sedimentation before entering the
plant. |
Feed water pump | Provide power for pretreatment part. |
Dosing system | And add the flocculant. |
quartz sand ) | quartz sand, used to remove iron,colloid,silt etc, to make effluent water cleaning. |
Active carbon filter | Remove color, free chloride, organic matter, harmful matter, etc. |
Dosing system | Detail dosing system will be decided by: source quality & treated
water quality requirements. Normal including: inhibitor dosing, PH dosing, reducing dosing,
germicide dosing. |
2. RO sea water plug system | Security filter | Prevent large particles, iron, dust, SS matter, impurity into the
RO membrane. |
Plung pump | Provide power for RO. |
RO membrane | Removes: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium. |
| | |
3. Portable seawater desalination for boat and other small house Control system | Control panel | Assembled by factory. Auto type. |
PLC mode | Adopt Mitsubishi from Japan, good quality. |
Touch screen | Make use of WeiNview from Taiwang. Convenience for user to operate. |
Electricity components | Omron from German. |
Plant skid | Anti corrosion paited. |
All the process design will be done as per the sea water quality
analysis.
Click for more information
or add whatsapp:+86 13922972795
Design process test
Why we make you trust our Portable desalination plant,mobile
desalination plant,water desalination device?
Below will show you.
We can produce the desalination plant from 50 liter/hr to 50m3/hr.
Due to seawater desalination plant/system is customized as per the
seawater feed water total dissolved solid(TDS), output water
quality requirement standard outflow of the user requirement.
For choosing the right item for you, could you please tell us the
following detail:
1) Made water analysis result? (The TDS is 35000PPM or more than
4000PPM)
2) How many liters of output water per hour do you
required?(Eg,50L/hr, 250L/hr, 10m3/hr...…500m3/hr)
3) After treatment, Meeting World Health Organization standard or
other industrial purpose?
4) What's your local voltage and frequency. 380V/50hz or 380V/60hz
or other?
We asked above questions just want to do the right solution for you
then can save your money and save you time.
Please send us email let us know your detail requirements?
